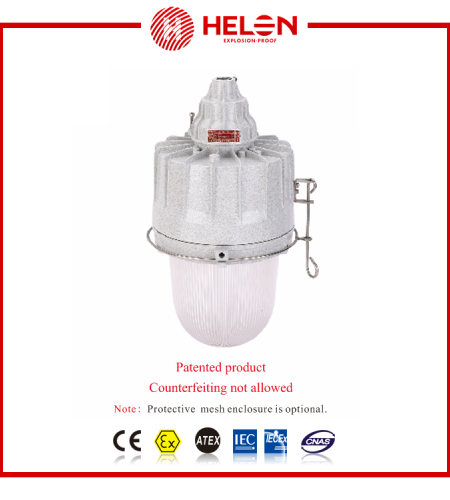

BAD82- Series explosion-proof lamp (ⅡC, tD)

Applications

1. Can be used in zone 1 and zone 20, zone 21 and zone 22 flammable dust atmosphere.
2. Temperature class: T1~ T4
3. Outdoor or indoor( IP66)
4. Usage for illumination in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous places. For illumination.

Features

1. Enclosure is cast with aluminium alloy, surface is sprayed with plastic by high-pressure static, fine outline, outer fasteners are made of stainless steel.
2. The transparent parts are made of toughened glass, glare proof designing;
3. Ball seat use high temperature resistant, anti-aging silicon rubber, has the performance of good dust-proof, waterproof for installation and maintenance.
4. It is holistic structure, luminaries chamber, electrical equipment chamber and connection chamber are independent respectively, convenient maintenance, reliable electric function.
5. The body and line set of the lamp are patent structure (connect without the line),it made the fixture and maintaining more conveniently.
6. Using high purity aluminum reflectors, surface anodic oxidation can improve the efficiency.
7. Built in electric induction ballast, can take with compensate capacitor. Power factor≥0.9.
8. Have set up convenient open hole and use patent structure (auto-suspending safe structure), in order to change the lamp house fast, convenient and safety.
9. Wiring with steel tube or cable.


Model implication (BAD82-X/T)
