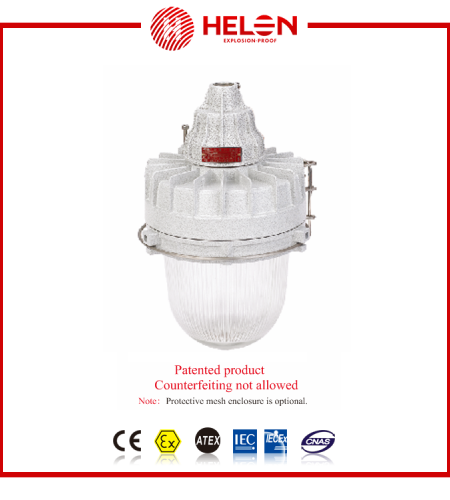

BAD83- Series explosion-proof lamp (ⅡC, tD)

Applications

1. Can be used in Zone 1 and Zone 2,groupⅡA,ⅡB and ⅡC explosive atmosphere and zone 20,zone 21 and zone22 flammable dust;
2. Temperature class:T1～T4(T6);
3. Indoor or outdoor (IP66);
4. Can be used in chemical, oil refining, oil, marine oil platform, military industry and other dangerous place for illumination.

Features

1. Enclosure is cast with aluminium alloy, surface is sprayed with plastic by high-pressure static, fine outline, outer fasteners are made of stainless steel;
2. The transparent parts are made of toughened glass,glare proof designing;
3. Ball seat use high temperature resistant, anti-aging silicon rubber, has the performance of good dust-proof, waterproof;for installation and maintenance;
4. Lamps for holistic patented structure(combined type),effectively reduce the light source cavity, electric temperature rise, make sure the cavity lamps and lanterns service life;
5.Luminaries chamber, electrical equipment chamber and connection chamber are independent respectively, convenient maintenance, reliable electric function;
6. The body and line set of the lamp are patented structure (connect without the line),it made the fixture and maintaining more conveniently;
7. Using high purity aluminum reflectors, surface anodic oxidation can improve the efficiency;
8. Electronic ballast is with wide voltage input 150~260V and middle frequency output, eliminate 50Hz frequency flash, ensure the illumination quality, low start current, no impact to the electricity net and luminaries,the life can be added 30%;
9. Electronic ballast is with self protection function to open circuit, short circuit, internal break, gas leak, instant power failure, damagement of electronic ballast or luminaries, it also can improve lamp and personnel safety;
10. 70W metal halide lamp can be equipped with emergency device, emergency and illumination luminaries is L70W，which is used on place with high requirement.
11. Have set up convenient open hole and use patent structure (auto-suspending safe structure),in order to change the lamp house fast,convenient and safety;
12. Wiring with steel tube or cable.


Model implication

Light distribution curve
