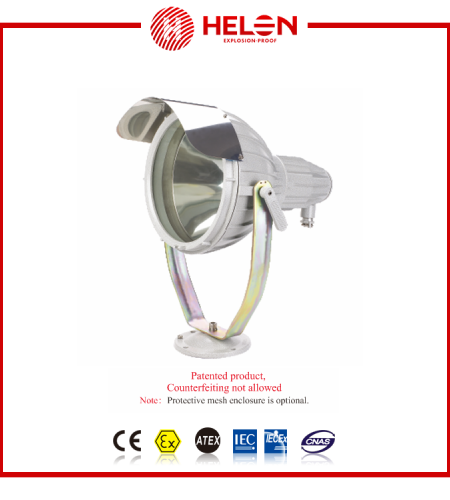

BAT51- Series explosion-proof floodlight(ⅡB、ⅡC、tD)
Perhatian!
Spesifikasi BAT51- Series explosion-proof floodlight(ⅡB、ⅡC、tD)
Applications
1. Can be used in Zone 1 and Zone 2, groupⅡA,ⅡB and ⅡC explosive atmosphere and Zone 20,Zone 21 and Zone22 flammable dust atmosphere.
2. Temperature class:T1~T4.
3. Indoor or outdoor(IP65,IP66*indicate it when ordering).
4. Can be used in the chemical, petroleum refining, petroleum exploitation,offshore platform, tankers, military industry and other dangerous place for illumination.
Features
1. Enclosure is cast with aluminum alloy, after high speed impeller blasting treatment surface is sprayed with plastic by high pressure static ,fine outline,outer fasteners are made of stainless steel.
2. The transparent parts are made of toughened glass.
3. Sealing strips use high temperature resistant, anti-aging silicon rubber, has the performance of good dust-proof, waterproof.
4. The lamp body can be rotated 360°, the range of elevation : +90°~-60°.
5. The reflex housing is made of pure aluminum with high reflex rate.
6. Projection of distance not less than 150 meters.
7. Wiring with cable.
Model implication
Outline & installation dimensions
Outline & installation dimensions
Thread specification | Cable diameter | SW | Tread length | Tread length | Ex-mark | Degree of |
(mm) | (mm) | L1(mm) | L1(mm) | protection | ||
M20S×1.5 | 5.5~12 | 22 | 16 | 30 | Ex eⅡGb Ex tD A21 IP66 | IP66 |
M20×1.5 | 9.5~16 | 27 | 16 | 30 | ||
M25×1.5 | 12.5~20.5 | 30 | 16 | 30 | ||
M32×1.5S | 16.9~26 | 36 | 16 | 32 | ||
M40×1.5 | 22~33 | 45 | 16 | 38 | ||
M50×1.5 | 28~41 | 57 | 16 | 38 | ||
M63×1.5 | 36~52.6 | 70 | 17 | 52 | ||
G1/2 | 5.5~12 | 22 | 16 | 30 | ||
G1/2 | 9.5~16 | 27 | 16 | 30 | ||
G3/4 | 12.5~20.5 | 30 | 16 | 30 | ||
G1 | 16.9~26 | 36 | 16 | 32 | ||
G11/4 | 22~33 | 45 | 16 | 38 | ||
G11/2 | 28~31 | 57 | 16 | 38 | ||
G2 | 36~52.6 | 70 | 17 | 52 | ||
NPT1/2 | 5.5~12 | 22 | 16 | 30 | ||
NPT1/2 | 9.5~16 | 27 | 16 | 30 | ||
NPT3/4 | 12.5~20.5 | 30 | 16 | 30 | ||
NPT1 | 16.9~26 | 36 | 16 | 32 | ||
NPT11/4 | 22~33 | 45 | 16 | 38 | ||
NPT11/2 | 28~31 | 57 | 16 | 38 | ||
NPT2 | 36~52.6 | 70 | 17 | 52 |
