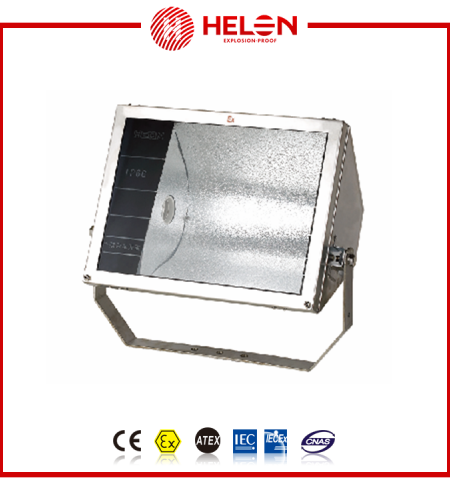

BAT52-□ II Series explosion-proof floodlight (stainless steel enclosure) (n, tD)I

Update Terakhir
02-04-2017
Dilihat Sebanyak
620 kali
Lokasi
Banten - Tangerang - Karawaci
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi BAT52-□ II Series explosion-proof floodlight (stainless steel enclosure) (n, tD)I

Applications

1. Can be used in Zone 2,groupⅡA,ⅡB and ⅡC explosive gas atmosphere and Zone 21 and Zone 22 flammable dust atmosphere;
2. Strong corrosive gas environment;(T6);
3. Temperature classes: T1 ~ T3;
4. Indoor, outdoor (IP65, IP66 * when ordering need to put forward);
5. Used in the chemical, oil, oil, Marine oil platform, tankers, war industry and dangerous risks places.

Features

1. The square stainless steel shell, beautiful shape;
2. Toughened glass, stainless steel fasteners exposed;
3. Sealing strip use high temperature resistant, anti-aging silicone rubber, have Good waterproof, dustproof, such as performance;
4. The light body can be installed horizontally or wall installation, 45 ° ~ 90 adjustable;
5. Orange lines diffuse board can make the light is downy, illuminate Angle large extent;
6. Cable wiring.


Model implication


Light distribution curve


Main technical parameters

Light source power(W) Ex-mark
Metal halide lamp High pressure sodium lamp
175, 250, 400 150, 250, 400    Ex nRⅡT3 Gc/Ex tD A21 IP66 T195℃
1000 1000    Ex nRⅡT2 Gc/Ex tD A21 IP66 T290℃
Rated voltage Degree of Erosion- Inlet thread Cable outer
(V)  protection proof class dia.(mm)
220/230*/240* IP65 IP66* WF2 G3/4 M25×1.5 φ10~φ14
*: Please notice when ordering.

Outline & installation dimensions
