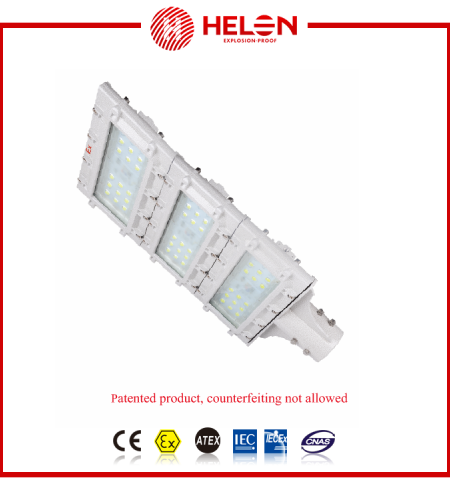

BAT52-E II Series explosion-proof energy-efficient LED floodlight(ⅡB, ⅡC, tD)

Applications

1. Can be used in Zone 1 and Zone 2,groupⅡA,ⅡB and ⅡC explosive gas atmosphere and Zone 20,Zone 21 and Zone22 flammable dust atmosphere;
2. Temperature class:T1～T6;
3. Indoor or outdoor (IP66);
4. Can be used in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous place.

Features

1. Enclosure is cast with aluminum alloy, surface is sprayed with plastic by high pressure static, fine outline.
2. High-energy impact resistance toughen glass, outer fasteners are made of stainless steel.
3. Silicone rubber seal, high temperature resistant, anti-aging, has a good waterproof, dustproof performance;
4. The structure is LED PV modules of integrated direct type, and the main chamber and wiring chamber are respective; Only wiring chamber open when wiring, so the installation is convenient and safe;
5. Module structure, assembly according to requirements;
6. Several LED are arranged logically, high-efficient, with the luminescent effliciency≥140 lm/W, CRI≥1270, and long service time over 50,000 hours, and can be long-term used without maintenance;
7. Use the optical lens, even illumination.
8. Input with wide voltage(180-265V), output with constant power, the power factor≥0.98, and have the protective of constant voltage, current, over current, open circuit, short circuit, andfunction surge-preventing, etc;
9. Special Angle adjusting mechanism which according to customer requirements, adjust the irradiation Angle, can be installed in horizontal or wall lamp body;
10. Wiring with cable.
