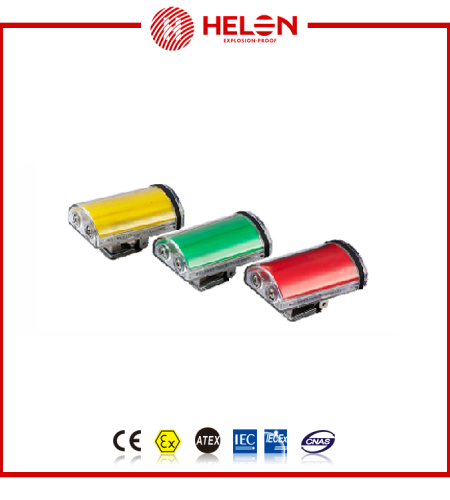

HLBD301 Explosion-proof directional light(ⅡC)
Perhatian!
Spesifikasi HLBD301 Explosion-proof directional light(ⅡC)
Applications
1. Can be used in Zone 1 and Zone 2, group ⅡA, II B and II C explosive gas atmosphere;
2. Temperature classes: T1 ~ T6;
3. Indoor and outdoor (IP68 (50 meters));
4. Used in the construction, operation, and municipal, guardianship, ambulance, rescue and other staff for the signal contact and location display, a variety of special dangerous places as warning signs.
Features
1. Waterproof、 anti-corrosion anti-throw: full tightness process design, which can be work normally within 50 meters under water; material go through a special surface protection treatment, can work in strong corrosive environment; Case is made in U.S. bulletproof glue material refined, ensure the product can withstand strong collision and impact;
2. High efficiency and energy saving: imported LED light source, visible to the naked eye within 4800 meters (3 miles); Penetration of water and mist is 300-500 - m; Equipped with two 7 high energy battery, continuous work time 200 hours or more;
3. The intelligent control: with frequency flash, flash blasting, long bright three functions; Temperature range:
4. In the freezing or 120 ℃ to 60 ℃ high temperature can work properly;
5. Optional colors: red, warning, yellow, green and other color matching(when ordering, please specify);
6. Easy to apply: small volume, light weight, simple operation, can use hang, clamp, bundling and magnetic adsorption to carry a variety of ways.
Main technical parameters
HLBD301 Explosion-proof directional light(ⅡC)
Working voltage (V) | Quiescent dissipation (μA) | Maximum pulse current (mA) |
3 | <3 | 80 |
Continuous work time (h) | Strobe light time (h) | Flash light time (h) |
50 | 120 | 200 |
Ex-mark | Degree of | Weight | Outline dimensions |
protection | (Kg) | L×W×H(mm) | |
Ex deⅡC T6 Gb | IP65 | 0.38 | 220×105×88 |
