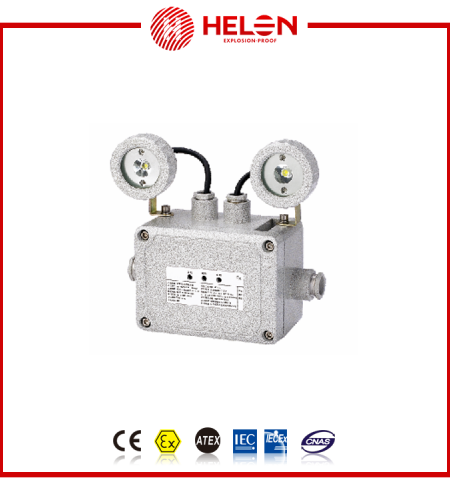

HL-ZFZD-E6W-BDJ05-Series explosion-proof emergency lamp(ⅡC, tD)

Applications

1. Can be used in Zone 1 and Zone 2, group ⅡA, II B and II C explosive gas atmosphere and Zone 20, Zone 21 and Zone22 flammable dust atmosphere;
2. Temperature class: T1～T4 (T6);
3. Indoor or outdoor (IP66);
4. Can be used in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous place as illumination or special emergency illuminance.

Features

1. Enclosure is cast with aluminum alloy, surface is sprayed with plastic by high static, fine outline;
2. Toughen glass, outer fasteners are made of stainless steel;
3. High brightness LED lighting diode is in low consumption, the life can be up to 100000 hours, and it is saving energy and protecting environmente;
4. The lamp can be used in emergency state exclusively, built-in non-mainrenance lithium battery. It is charging in normal power transmission state. Emergency lamp will light up automatically when accidents happen or power is off;
5. Internal circuit is designed specially, which has good performances including overcharge protection, over discharging protection and short circuit protection;
6. The lamp is equipped with self-checking function. It can self discharge once each month. In emergency work state, it can light up for 120 seconds, and switch to main power state automatically;
7. The lamp is equipped with annual inspection function. It can switch itself from each year, and continuously light until discharge ends, then main power state to automatically emergency work state automatically once switch back to main power state automatically;
8. Wiring with steel tube or cable.
