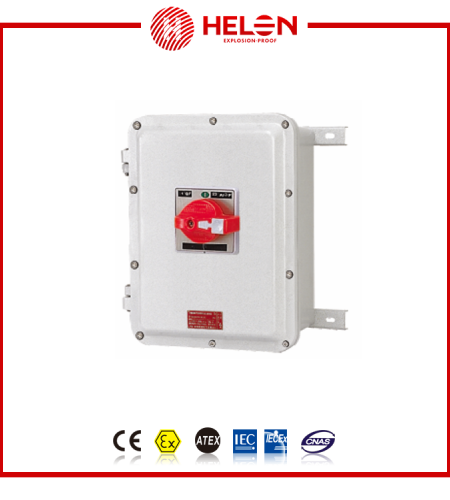

Explosion-proof Distribution Boxes(Motor Starters) HLD

Application

Zone 1 and Zone 2
Zone 21 and Zone 22
Meet the necessities in the following industries, such as petroleum, chemical, electricity, medicine, textile, wine-making, aerospace, military, fire-fighting, etc.

Features and benefits

◆ Explosion protection to
-CENELEC
-IEC
◆ Copper-free aluminium enclosure; powder-coated surface.
◆ Built-in MCB (mini circuit breaker), MCCB (moulded circuit breaker).
◆ Electric leakage protection device is optional.


Catalogue number logic

Technical data

Explosion-proof distribution boxes (Motor Switches)

Explosion protection		HLDP03-K□/□/□/□
Gas explosion protection	II2 G Ex d IIΒ T6 Gb
Dust explosion protection	II2 D Ex tb ΙΙC T80℃ Gb ΙP66
Conformity to standards	EN 60079-0:2012,EN60079-1:2007,EN60079-31:2009
	IEC 60079-0:2011,IEC60079-1:2007,IEC60079-31:2008
Enclosure material	Aluminium alloy; powder coated surface
Enclosure colour	gray-white with mental lines
Exposed fastener	Stainless steel
Degree of protection	IP66
Ambient temperature	-60℃~+55℃
Cable gland (optional)	Ex d is recommended.
Entry direction	Bottom
Electric leakage protection	On request
Circuit breaker	MCB (mini circuit breaker)	HLDP03-K63/□/□/□
Max.working voltage	440V AC  50/60Hz
Rated voltage	1P/230V AC,2P/3P/4P/400V AC 50/60Hz
Rated current	1A,2A,4A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Pole number	1P, 2P, 3P, 4P
Breaking capacity	6kA, 10kA, 15kA
Tripping characteristic	Instantaneous tripping range (5~10) In, (7~10) In or (10~14) In
Impulse withstand voltage	6kV
Cable entries	Standard 1~16A:2×M25×1.5 plug
	20~32A:2×M32×1.5 plug
	40~63A:2×M40×1.5 plug
Circuit breaker	MCCB (moulded case circuit breaker)	HLDP03-K160/□/□/□
Rated working voltage	690V AC  50/60Hz
	500V DC
Rated working current	80A, 100A, 125A, 160A
Pole number	3P, 4P
Breaking capacity	380/415V AC 50/60Hz, 36kA/50kA
	440V AC 50/60Hz,30kA/45kA
Impulse withstand voltage	8kV
Tripping device	Thermomagnetic type
Cable entries	Standard 80~100A:2×M50×1.5 plug
	125~160A:2×M63×1.5 plug
Circuit breaker	MCCB (moulded case circuit breaker)	HLDP03-K250/□/□/□
Rated working voltage	690V AC  50/60Hz
	500V DC
Rated working current	200A, 250A
Pole number	3P, 4P
Breaking capacity	380/415V AC 50/60Hz, 36kA/50kA
	440V AC 50/60Hz,25kA/40kA
Impulse withstand voltage	8kV
Tripping device	Thermomagnetic type
Cable entries	Standard 2×M63×1.5 plug
Note	Rated current＞250A on request.



Dimension drawings (all dimension in mm) - subject to alteration

Electrical schematic diagram
