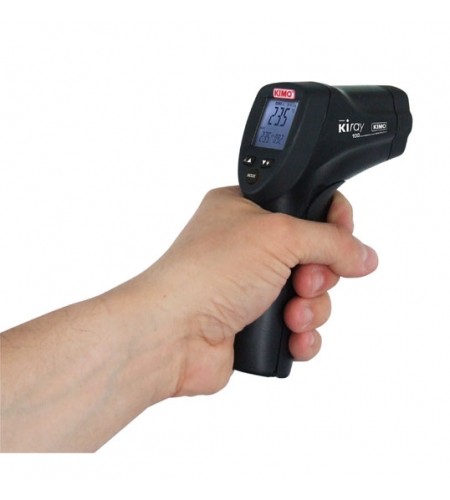

PORTABLE INFRARED THERMOMETER
Type : KIRAY-100
Fungsi : Alat ukur panas dengan sinar infrared
Specification :
Spectral response..................8 - 14 ¼ m
Optical.....................................D.S : 20: 1 ( 13 mm at 260 mm)
Temperature range.................From -50 to + 800° C
Accuracy* ...............................From -50 à + 20° C : ± 2.5° C
From + 20 to + 300° C : ± 1% of reading ± 1° C
From + 300° C to + 800° C : ± 1.5%
Infrared repeatability..............From -50 to + 20° C : ± 1.3° C
From -20 to + 800° C : ± 0.5% or ± 0.5° C
Display resolution..................0.1° C
Response time.......................150 ms
Emissivity...............................Adjustable from 0.10 to 1.0 ( pre-set at 0.95)
Over range indication............Display indication : « ---- »
Dual laser sighting.................Wave length : from 630 nm to 670 nm
Output 80% RH in storage
Dimensions.............................145 x 95 x 40 mm
Weight.....................................180 g ( included battery)
