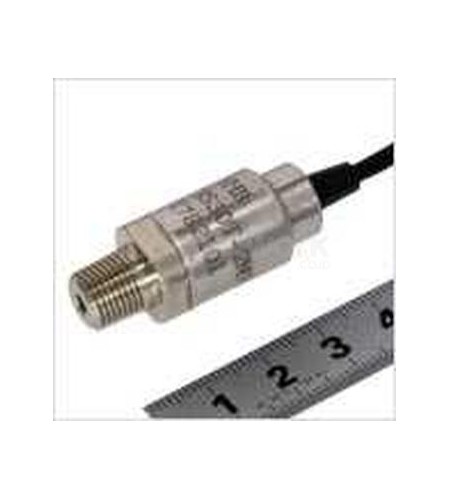

Gambar Produk
Pressure Sensor : NS30T ( -H) Series
Update Terakhir
08-07-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
76 kali
Lokasi
DKI Jakarta - Jakarta Barat
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Pressure Sensor : NS30T ( -H) Series
Detail Pressure Sensor : NS30T ( -H) Series
*Small size and light weight
The manifold type pressure can be measured by high accuracy and the high response.
Natural frequency : 72 kHz~ 566 kHz
Accuracy 0.2 % R.O.
Temperature environment 150 at max.( NS30T-H series)
* Application
Experimental use of automatic transmission engine, Various test benches, Solenoid valve experiment device, Calorie meter, CO2 compressor,
Flow measurement device
*
Specifications
Parts No. NS30T NS30T-H
Rated capacity 200 kPa~ 10 MPa 200 kPa~ 10 MPa
Safe overload 200 % R.C.
Ultimate overload 300 % R.C.
Accuracy 0.2 % R.O. ( including non-linearity, hysteresis and repeatability)
Rated output
1.5 mV/ V 0.15 mV/ V
( NS30T-200KP( -H) : 1.0 mV/ V 0.10 mV/ V)
Excitation, recommended DC10 V
Excitation, maximum DC15 V
Zero balance 0.05 mV/ V
Input resistance 700 ~ 900
Output resistance 700 ~ 900
Insulation resistance 1 000 M or more ( DC 50 V)
Temp. range, compensated -20 ~ 70 -30 ~ 150
Temp. range, safe -30 ~ 80 -40 ~ 160
Temp. effect on zero 0.2 % R.O./ 10
Temp. effect on output 0.2 % LOAD/ 10
Class of protection IP65
Material of pressure hole Stainless steel ( SUS340L)
Material of diaphragm Sapphire
Mounting screw G1/ 8{ PF} , R1/ 8{ PT}
Tightening torque 20 Nem ~ 40 Nem
Cable 3.8, shielded high temperature 1 m cable directly attached, cable end is separated
Weight Approx. 45 g ( only main body)
*
High accurate measurement of compound pressure is possible.
Natural frequency : 72 kHz~ 1 278 kHz
Accuracy 0.2 % R.O.
Temperature environment 150 or less is possible.
* Application
Automatic transmission or engine test stand.
Changeable valve lift mechanism testing instrument and various test benches, Solenoid valve experiment device, Calorie meter, CO2 compressor, Flow measurement device
*
Specifications
Parts No. NS10T NS10T-H
Rated capacity 200 kPa~ 50 MPa 200 kPa~ 20 MPa
Safe overload 200 % R.C.
Ultimate overload 300 % R.C.
Accuracy 0.2 % R.O. ( including non-linearity, hysteresis and repeatability)
Rated output
1.5 mV/ V 0.15 mV/ V
( NS10T-200KP( -H) : 1.0 mV/ V 0.10 mV/ V)
Excitation, recommended DC10 V or less
Excitation, maximum DC30 V DC15 V
Zero balance 0.05 mV/ V
Input resistance 700 ~ 900
Output resistance 700 ~ 900
Insulation resistance 1 000 M or more ( DC 50 V)
Temp. range, compensated -20 ~ 70 -30 ~ 150
Temp. range, safe -30 ~ 80 -40 ~ 165
Temp. effect on zero 0.2 % R.O./ 10
Temp. effect on output 0.2 % LOAD/ 10
Class of protection IP55 IP65
Material of pressure hole Stainless steel ( SUS340L)
