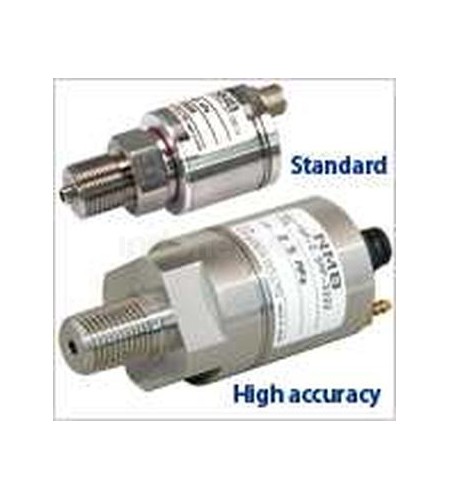

Pressure Sensor : NS115/ NS115 Series
Gambar Produk
Pressure Sensor : NS115/ NS115 Series
Update Terakhir
08-07-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
58 kali
Lokasi
DKI Jakarta - Jakarta Barat
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Pressure Sensor : NS115/ NS115 Series
Detail Pressure Sensor : NS115/ NS115 Series
*Excellent in the long term stability.
Accuracy 0.1% R.O. is available
( including non-linearity, hysteresis and repeatability)
Small size and light weight, the Cable horizontal putting out type is possible.
Excellent in solidity and a surge pressure
Attached zero point adjustment
* Application
Automatic transmission testing equipment, Solenoid valve testing device, Fuel cell evaluation device
Specifications
Rated capacity 500 kPa ~ 10 MPa ( NS115P / High-accuracy type)
5 MPa ~ 50 MPa ( NS115 / Standard) )
Safe overload 200 % R.C.
Ultimate overload 300 % R.C.
Accuracy 0.1 % R.O. ( NS115P / High-accuracy type)
0.5 % R.O. ( NS115 / Standard type) )
( including non-linearity, hysteresis and repeatability)
Rated output Current : 4 mA ~ 20 mA ( 2 wires method, Load resistance 500 or less, at 24 V)
Voltage : 0 V ~ 5 V, 0 V ~ 10 V ( Load resistance 5 k or more) .
Zero adjustment range 1 %
Power supply voltage DC 24 V( 18 V ~ 28 V)
Power consumption Approx. 20 mA
Insulation resistance 1 000 M or more ( DC 50 V)
Temp. range, compensated -20 ~ 70
Temp. range, safe -30 ~ 80
Temp. effect on zero 0.15 % R.O./ 10 ( NS115P / High-accuracy type)
1.0 % R.O./ 10 ( NS115 / Standard type)
Temp. effect on output 0.15 % LOAD/ 10 ( NS115P / High-accuracy type
1.0 % LOAD/ 10 ( NS115 / Standard type)
/ -ring seal FKM4-class D ( High-accuracy type) , NBR( Standard type)
Selectable by the medium.
Class of protection IP65
Material of pressure hole SUS316L ( high-accuracy type) , SUS304L ( Standard type)
Material of cover SUS316 ( high-accuracy type) , Aluminium ( Standard type)
Material of pressure diaphragm Single crystal sapphire
Mounting screw 1/ 8 e 1/ 4 e 3/ 8G{ PF} , { PT}
Weight NS115 : Approx. 200 g, NS115P : 250 g ( Main body only)
Tightening torque 20 Nem ~ 40 Nem
