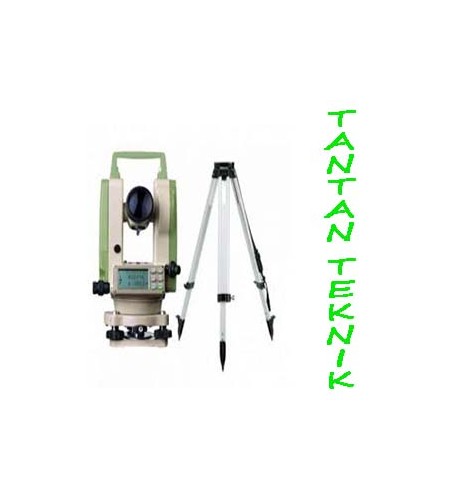

DIGITAL THEODOLITE RUIDE ET-02|| THEODOLITE DIGITAL RUIDE ET-02

Update Terakhir
19-03-2019
Minimum Pembelian
1 SET
Dilihat Sebanyak
65 kali
Lokasi
DKI Jakarta - Jakarta Barat
Harga
Rp. 12.500.000
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi DIGITAL THEODOLITE RUIDE ET-02|| THEODOLITE DIGITAL RUIDE ET-02

Features :
Specified large LCD screen for clear angle reading under all conditions.
Absolue encoding
5-key keyboard, built-in illumination
RS-232C data port, easy to connect with EDM.

Theodolite ET Series                                                                     The ET series Theodolites have Smart appearance, reasonable structure, practical functions. They are easy-to-use, and with excellent performance and reliable quality.
SPECIFICATION
  ET-02 ET-05
Telescope:
Magnification: 30X
Objective Lens: 45mm
Overall Length: 157mm
Stadai Ration: 100
Stadia Constant: 0
Image: erect
Field of View: 1° 30"
Minimum Focus: 1.4m
Resolving Power: 3.0'
Electronic Angle Measurement:
Reading System Photoelectric detection by incremental encoder
Diameter of Circle (VHz): 79mm
Minimum Reading: 1"/5" (Selectable)
Accuracy: 2" 5"
Horizontal Angle Dual Dual
vertical Angle Dual Single
Display:
(LCD) Display Type 2 sides, segment LCD in two lines
Level Sensitivity:
Plate Level: 30"/2mm (30" per 2mm)
Circular Level: 8'/2mm (8" per 2mm)
Auto Vertical Compensator:
System: Liquid-electric detection/plate level selectable
Working range: +3'
Accuracy: 1" (Liquid-electric detection)  30""/2mm (plate level)
Optical Plummet Telescope:
Image: Erect
Magnification: 3X
Focusing Range: 0.5m - infinity
Tampilkan Lebih Banyak
