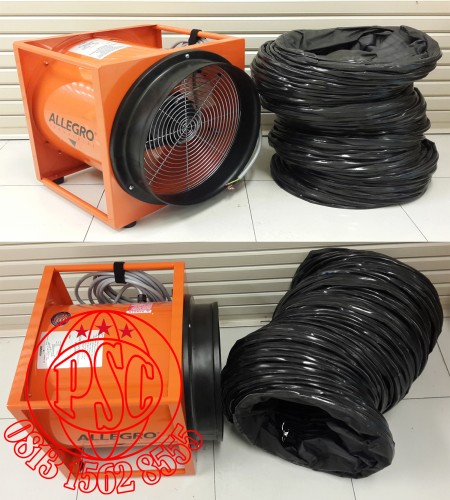

Blowers Axial 16” Explosion-Proof Blower Allegro Safety
Perhatian!
Spesifikasi Blowers Axial 16” Explosion-Proof Blower Allegro Safety
|
Blowers Axial : 16” Explosion-Proof Blower Allegro Safety |
||||
|
Specifications |
||||
|
Product Description |
VENTILATION BLOWER, EXPLOSION PROOF |
|||
|
Part Number |
9515-01, 9515-01S |
|||
|
Style |
AXIAL FAN 16” ( 40.6 cm ) |
|||
|
General Description |
Designed for use in applications requiring a large amount of output in a hazardous location environment. Allegro’s 16” ( 40.6 cm ) Explosion Proof blower is offered with a ½ HP explosion proof motor with an efficient 6 - blade fan in a rugged metal housing. 9515-01 model is certified to CSA Standard C22.2 No.113. |
|||
|
Construction |
Complete unit epoxy powder coated in orange |
|||
|
Interchangeable flange for intake or exhaust side mounting |
||||
|
18 gauge cold rolled steel housing |
||||
|
Integrated carry handles |
||||
|
Steel grill (zinc plated), equipped with four rubber feet |
||||
|
Can be used with Adaptor Reducer ( P/N : 9600-50 ) used with 8” ( 20.3 cm ) ducting ( special grounding instructions must be applied ) |
||||
|
Motor |
HP |
½ HP |
||
|
Certifications |
UL Listed, CSA Certified |
|||
|
Voltage/Hz |
Model 9515-01 : 115/230V AC, 60 Hz, Single Phase |
|||
|
|
Model 9515-01S : 220V AC, 60 Hz, Single Phase |
|||
|
RPM |
1725 |
|||
|
Current Draw |
8.2/4.1A |
|||
|
Cord |
25’ (7.63 m) 12/3 AWG SOOW 90C 600V heavy duty |
|||
|
Plug |
Model 9515-01 |
NEMA 20 Amp plug, explosion proof rated |
||
|
Model 9515-01S |
No plug included |
|||
|
Fan |
Anti-Static glass reinforced polyamide ( PAGAS ) six blade fan with aluminum hub |
|||
|
Moving fan mounted 1⅝” ( 4.12 cm ) from grill for safety, grill gap 5/16” ( 0.79 cm ) |
||||
|
Ducting : ( Accessory ) |
Black, single-ply, neoprene coated, statically conductive vinyl/polyester material, temperature resistant up to 250°F (121.1°C) |
|||
|
Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix ( meets ASTM 227 specs ) |
||||
|
Hazardous Location Rating |
Class I : |
Class II : |
||
|
Divisions: 1 & 2 |
Divisions : 1 & 2 |
|||
|
Groups : C & D |
Groups : F & G |
|||
|
Blower Dimensions |
Length In ( cm ) |
Width In ( cm ) |
Height In ( cm ) |
Weight Lbs ( Kg ) |
|
18” ( 45.7 cm ) |
18” ( 45.7 cm ) |
19” ( 48.2 cm ) |
67 lbs ( 30.3 kg ) |
|
|
Flow Rates |
( CFM calculated using 15’ ( 4.57 m ) of 16” ( 40.6 cm ) ducting ) |
|||
|
Free Air CFM ( m³/hr ) |
One 90° Bend CFM ( m³/hr ) |
Two 90° Bend CFM ( m³/hr ) |
||
|
2900 (4 927.13 ) |
1800 ( 3024.23 ) |
1750 ( 2973.26 ) |
||
|
Hazardous Locations Rating |
||||
|
Class I : |
Class II : |
|||
|
Divisions : 1 & 2 |
Divisions : 1 & 2 |
|||
|
Groups : C & D |
Groups : F & G |
|||
|
Blower Dimennsions |
||||
|
Length In ( cm ) |
Width In ( cm ) |
Height In ( cm ) |
Weight Lbs ( Kg ) |
|
|
18” ( 45.7 cm ) |
18” ( 45.7 cm ) |
19” ( 48.2 cm ) |
67 lbs ( 30.3 kg ) |
|
|
Flow Rates : ( CFM calculated using 15’ ( 4.57 m ) of 16” ( 40.6 cm ) ducting ) |
||||
|
Free Air CFM ( m³/hr ) |
One 90° Bend CFM ( m³/hr ) |
Two 90° Bend CFM ( m³/hr ) |
||
|
2900 ( 4927.13 ) |
1800 ( 3024.23 ) |
1750 ( 2973.26 ) |
||
