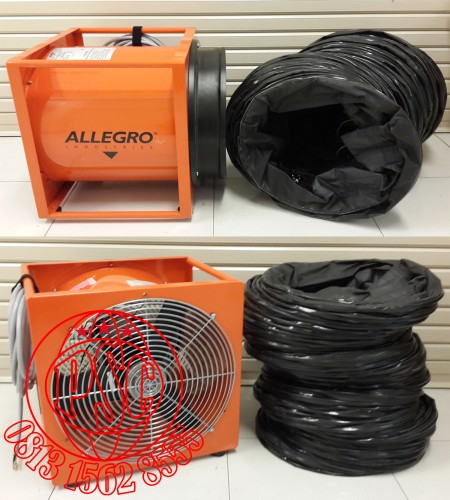

Blower 16” Explosion-Proof High Output Allegro Safety
Perhatian!
Spesifikasi Blower 16” Explosion-Proof High Output Allegro Safety
|
Blowers Axial : 16” Explosion-Proof High Output Blower Allegro Safety |
||||
|
Specifications |
||||
|
Product Description |
VENTILATION BLOWER, HIGH OUTPUT,EXPLOSION PROOF |
|||
|
Part Number |
9515-50EX |
|||
|
Style |
AXIAL FAN 16” ( 40.6 cm ) |
|||
|
General Description |
Designed for applications requiring a maximum amount of output. Made from 16 gauge cold rolled steel housing and powder -coated in safety orange with 3 blade impeller . Powered by a 1 ½ hp, 3450 RPM UL listed, IEC Ex/ATEX/INMETRO certified motor. Comes with an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport and a steel/zinc plated grill. Four rubber feet, built in on/off switch and voltage change switch are added features of this powerhouse unit. |
|||
|
Construction |
Complete unit epoxy powder-coated in orange |
|||
|
Interchangeable flange for intake or exhaust side mounting |
||||
|
16 gauge cold rolled steel housing |
||||
|
Integrated carry handles |
||||
|
Steel grill ( zinc plated ) , equipped with four rubber feet |
||||
|
Built -in “on/off” switch |
||||
|
Duct grounding lug |
||||
|
Motor |
HP |
1½ HP |
||
|
Certifications |
UL Listed, IEC Ex/ATEX/INMETRO Certified |
|||
|
Volt age/Hz |
115/230V AC, 50/ 60 Hz, Single Phase ( Integrated voltage selector ) |
|||
|
RPM |
3450 |
|||
|
Current Draw |
15.5/7.8 A ( 60 Hz ) |
|||
|
Cord |
25’ ( 7.63 m ) 12/3 AWG MTW 90 C 600 V |
|||
|
Plug |
NEMA 20 Amp , 125V or 250V plug,Explosion Proof rated |
|||
|
Protection |
Thermal, Automatic Reset |
|||
|
FAN |
Anti-Static glass reinforced polyamide ( PAGAS ) three blade fan with aluminum hub |
|||
|
Accessories |
Ducting |
Black, single -ply, neoprene coated, statically conductive vinyl/polyester material, temp.resistant up to 250 °F ( 121.1 °C ) |
||
|
Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix ( meets ASTM 227 specs ) |
||||
|
Grounding cable on both ends |
||||
|
EX Rated Receptacle |
Iron mounting box with triple coat finish and spring-loaded door to keep out dust when in use. When plug is not in use, a neoprene gasket inside receptacle seals around plug to keep out dirt, water, dust, etc |
|||
|
9503 - 03 : 125 V only |
||||
|
9503 - 06 : 250 V only |
||||
|
EX Rated Extension Cords |
9540 - 50EX : 115 V |
|||
|
9540 - 60EX : 230 V |
||||
|
Hazardous Location Rating |
Motors |
EX Plugs |
||
|
ATEX |
II 2 G Ex d Gb |
NEC 500 |
Class I, Group B, C, D Class II, Group F&G |
|
|
IECEx |
Ex d IIB Gb |
NEC 505 |
Class I, Zone 1, Group IIB & H2 |
|
|
INMETRO |
Ex d IIB Gb |
|||
|
Blower Dimensions |
Length In ( cm ) |
Width In ( cm ) |
Height In ( cm ) |
Weight Lbs ( Kg ) |
|
18” ( 45.7 ) |
18” ( 45.7 ) |
19” ( 48.2 ) |
62 lbs ( 28,12 ) |
|
|
Flow Rates |
( CFM calculated using 15’ ( 4.57 m ) of 16” ( 40.6 cm ) ducting ) |
|||
|
Free Air CFM ( m³/hr ) |
One 90° Bend CFM ( m³/hr ) |
Two 90° Bends CFM ( m³/hr ) |
||
|
4839 ( 8226.30 ) |
2942 ( 5001.40 ) |
2926 ( 4974.20 ) |
||
