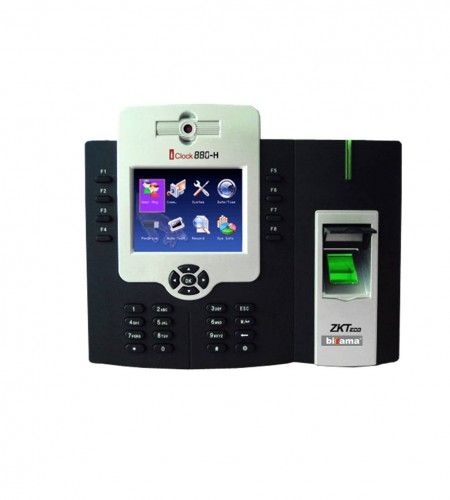

iClock880, Large Capacity Fingerprint Time & Attendance and Access Control Terminal
Perhatian!
Spesifikasi iClock880, Large Capacity Fingerprint Time & Attendance and Access Control Terminal
iClock880
Large Capacity Fingerprint Time & Attendance and Access Control Terminal- Big capacity 50000 fingerprint templates
- Camera and 3.5” color TFT-LCD display
-
iClock880-H features ZK’s high performance, high image quality optical fingerprint sensor. The patented optical sensor is resistant to scratches and impact. the device has camera and 3.5” color TFT-LCD display.
The communication interface of the device includes TCP/IP, RS232/485. Backup battery is standard in case of power failure. The device has professional access control function it can be used in multi-factor identification modes including fingerprint, password, RFID card or any combination.
-
• 50,000 templates (1: N) and 800,000 records.
• Multimedia 3.5’’ TFT screen.
• Internal Camera and Photo- ID support the user’s photo display and make T&A application more visible and reliable.
• Built-in backup battery.
• Optional integrated proximity or smart card reader.
• Built-in USB port allows for manual data transfer when network isn’t available.
• 8 user-defined function keys.
• Relay contacts for lock and alarm.
• Multi Languages Support.
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers.
• SDK available for OEM customers and software devel opers. -
Technical Specifications
Fingerprint Capacity
50,000
Transaction Capacity
800,000
Hardware Platform
ZEM800
Sensor
ZK Optical Sensor
Algorithm Version
ZK Finger v10.0
Communication
TCP/IP
Standard Functions
Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, Anti-passback, 9 digit user ID, photo-ID, Camera, Built-in Battery
Access Control Interface
3rd Party Electric Lock, Door Sensor, Ext Button, Alarm, and Door Bell
Wiegand Signal
Input & Output
Optional Functions
ID/Mifare/HID, External Printer, ADMS
Display
3.5 inches TFT Screen
Power Supply
12V DC 3A
Operating Temperature
0°C - 45°C
Operating Humidity
20% - 80%
Dimension
213×178.2×47.5 mm
Gross Weight
1.95kg
