Pintu putar tripod adalah solusi pintu masuk yang kompak dan hemat biaya. Merancang untuk operasi yang halus dan sunyi, mengurangi konsumsi daya, keausan. Sangat cocok untuk daerah dengan lalu lintas tinggi.

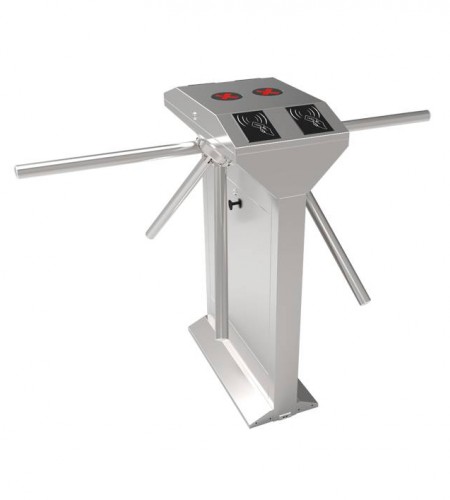

Seri TS1200, versi kompak stainless steel kami, menawarkan keandalan operasi yang tinggi dalam sebuah kasus kecil, ideal untuk tempat di mana ruang menjadi masalah. Seri TS1200 memiliki dua saluran dalam satu kasus, sangat hemat biaya untuk aplikasi.
Saat menerima sinyal dari sistem kontrol akses, atau tombol tekan, hal itu memungkinkan perjalanan satu orang pada satu waktu. Bagian ke dua arah dikontrol secara elektronik. Modus default adalah mengunci mekanisme sampai ada sinyal otorisasi yang valid. Jika Anda ingin mengatur satu sisi secara gratis, Anda dapat memilikinya dengan menyesuaikan mekanismenya. Jika terjadi keadaan darurat, lengan horizontal akan turun untuk memungkinkan jalur bebas.
Reliability
• Alloy steel tripod hub prevents mechanical wear
• Casework and tripod arms manufactured in stainless steel
• Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle.
• ZK patented compact mechanism ensures the long life of the lubricating oil inside.
• High quality electrical components
|
  |
Safety and User-Orientated Design
• Drop arm designed for emergency purpose
• No exposed screws, safer for the user.
• Smooth operation designed for mas transit application
• The pictogram on the device indicating access permission and direction of movement
• Special designed case shape, user-friendly for passenger to punch card or finger.
• Anti-tailgate
• Well-designed electronic protection cover. Neat wiring inside.
|
  |
Easy Integration
• Flexible reader installation plate. Customers can easily integrate with third party redaer
• Standard electrical interface for third party device.
• By using compact mechanism, the turnstile has more space inside for integration
• ZKTeco provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation.
Technical Specifications
|
|
Power Supply
|
AC 220V/110V, 50/60Hz
|
|
Operating Temperature
|
-28 °C- 60 °C
|
|
Operating Humidity
|
5%-85%
|
|
Working Environment
|
Indoor/Outdoor(shelter)
|
|
Rated Power
|
120W
|
|
Flow Rate
|
25- 48 passage/minute
|
|
Casework Material
|
SUS304
|
|
Pictogram Indication
|
Yes
|
|
Control System
|
Input controlled by dry contact
|
|
Emergency Button Input
|
Yes
|
|
Dimension
|
60×98×33(CM) + arm length 50CM
|
|
Package Dimension
|
73×108×45(CM)
|
|
Net Weight
|
55KG
|
|
Gross Weight with Package
|
63KG
|
|
Optional Function
|
Alternative material or shape, third-party access control integration, ticket system integration, passage counter
|
|
