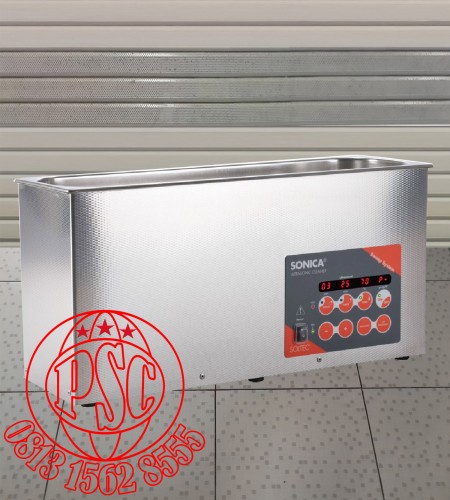

Ultrasonic Cleaner 6 Litres

General Characteristics
Ultrasonic Cleaning is a safe and efficient modern procedure, which ensures perfect cleaning within the shortest time possible. It has many advantages over ordinary cleaning methods. Ultrasonics can remove even the most tenacious deposits from parts which would be difficult to reach by hand, it also reduces the risk of injury or infection which may occur during manual cleaning.

Notes for use as “Medical Devices”
Denomination : Ultrasonic Cleaning Device UMDNS-nomenclature ( ECRI ) 14-263
Field of application : Cleaning and disinfection of surgical and dental instruments
Classification ( Medical Devices Directive 93/42/EEC, appendix IX ) : Class I, Non Active MD, Non Invasive MD, Non Implantable MD

“Medical Device” registration and classification
Registration Number : 103291/R SOLTEC Srl CND Classification : Z12011302 Ultrasonic Cleaning Device

Technical Data
Main line voltage 230/240 V~50/60 Hz
Main input power/consumption 180 W
Main input power with heating 355 W
Peak HF Ultrasound Power 360 W
US frequency 40 Khz ± 5% with SWEEP SYSTEM Technology
Liquid drain Tube 8 x 11 mm
Transducers 3 ( 2 Piezoelectric ceramics each )
Tank capacity [ L ] 6
Weight [ KG ] 5,1
Installation category Class II according to EN 61010-1
Environmental conditions Temperature Rel. Hum. 80% up to 31°C with linear
decrease up to 50% at 40°C
IP grade IP 22

CE-compliant  2004/108/EC EMC Directive ( EN61326 )
                      2006/95/EC LV Directive ( EN 61010-1 )
                      93/42/CEE Medical Device Directive
                      Risk Class I according to the rule 12 to the Directive 93/42/EEC Annex IX

Approximately Internal Tank Dimensions
W/D/H ( mm ) 500 / 140 / 100
Max filling volume tank 6 L

External Appliance Dimensions
W/D/H ( mm ) 540 / 165 / 260
Max operative volume 4,9 L

Constructive Materials
Housing Stainless steel AISI 304
Tank Stainless steel AISI 304.

Accessories
090.004.0005 Stainless steel wire basket Internal dim. 475 x 110 x 45 mm
090.004.0021 Stainless steel lid 3200 L
090.004.0043 Stainless steel auxiliary tank SonICA 3200 L Indicative dim. 500 x 140 x 100 mm
090.004.0034 Stainless steel beaker holder for one glass or plastic beaker
090.004.0032 Plastic beaker 250 ml
090.004.0033 Glass beaker 400 ml.
