Spesifikasi DFWLB MULTIFUNCTION IP68 WEIGHT INDICATOR

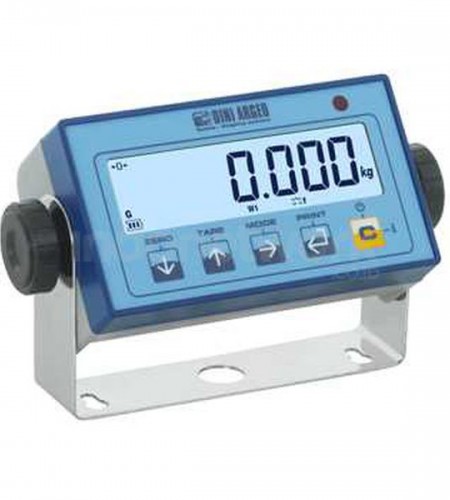

DFWLB Multifunction IP68 Weight Indicator



DFWLB": MULTIFUNCTION IP68 WEIGHT INDICATOR FOR INDUSTRY

Digital weight indicator for industrial environments, easy to install and use. The IP68 protection degree and the built-in long life battery make it particularly suitable for automotive and mobile weighing applications. Standard fitted with a support bracket with adjustable inclination. CE-M approvable (OIML R-76 / EN 45501).



MAIN FEATURES



  • 5-key functional waterproof keypad.

  • Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.

  • Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.

  • Suitable for use on the table, column, or wall.

  • Fitted with fixing bracket with adjustable inclination.

  • A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.

  • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved versions for legal for trade use.

  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

  • Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.

  • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.

  • Power supply through built-in rechargeable battery, with 60h operating time, and fitted with external battery charger.



MAIN CERTIFICATIONS



  • EC Type Approval (EN45501)

  • OIML R76



FUNCTIONS



  • MAIN FUNCTIONS:
    - Zeroing
    - Automatic tare
    - Presettable tare
    - Printing in 1, 2 or 3 copies
    - Data transmission to PC.


  • OPERATING MODES:
    - High Resolution Weighing x 10
    - Net/Gross or lb/kg conversion
    - Accumulation
    - Formula weighing
    - +/- Checkweighing
    - Percentage weighing
    - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option)
    - Counting
    - In/Out Truck weighing
    - Hold and Peak.



I/O SECTION


  • RS232/C bidirectional port on RJ11 connector for quick connection (optional RS485) on screw terminal, configurable for PC, PLC, or additional remote display.

  • RS232/C bidirectional port configurable for connection to printer or labeller.
  •
