Spesifikasi BST106-M10[FH] WEIGHING CONTROLLER RATION PACKING SCALE 4SCALE MODE

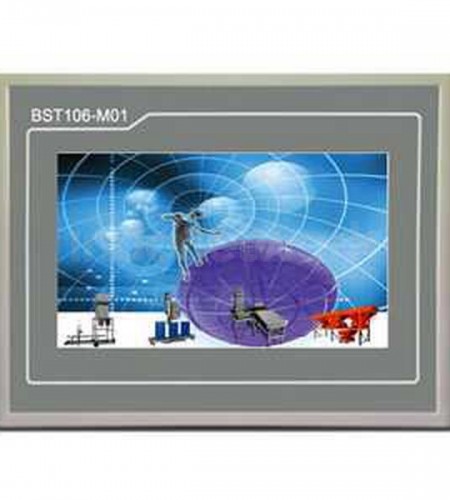

BST106-M10[FH] Weighing Controller Ration Packing Scale 4Scale Mode
Main Features:
Suitable for Increment Ration Packing Scale [Four-Scale Mode: Four-hopper-weighing with two-speed feeding and one bag-clamping].
EMC design with high anti-jamming capability, suitable for industrial environment.
Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
Loadcell Interface
4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
24-bit High-precision and high-speed Σ-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
I/O Interface
7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
Optional ‘Fast/Slow Feeding’ DOs for feeding control. Optional Slow Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
4 Definable analog signal AO[0~10V] for weight signal output or ‘Fast/Slow Feeding’ control.
Digital Communication Interface
COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
COM[RS232] for connecting RS232 Serial Printer.
USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
Software Function
Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
Load Calibration and Loss Calibration functions available.
10 Formulas for packing control.
Optional ‘Fall Value Auto Correction’ function.
Optional ‘Auto Pause while Deviation Alarming’ and ‘Auto Re-feeding’ functions.
Optional ‘Target Batch & Target Totalized Weight Control’ function [With Target Batch or Target Totalized Weight finished, the packing process will stop automatically].
The present Batch Record can be printed automatically and manually.
Historical Batch Records, Totalizing Reports and Formulas can be queried and printed.
With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
