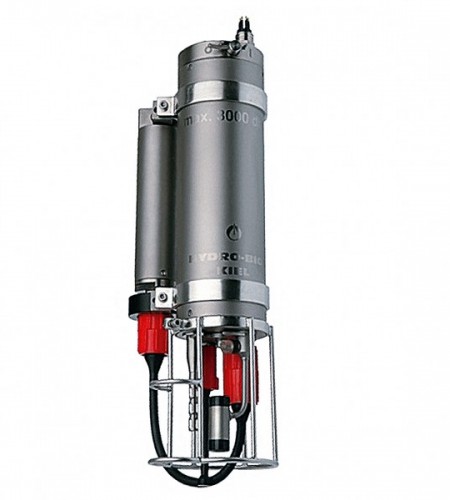

HYDROBIOS Net Probe CTD with 2 Electronic Flow Meters

Update Terakhir
12-02-2019
Dilihat Sebanyak
160 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi HYDROBIOS Net Probe CTD with 2 Electronic Flow Meters


FEATURES
  • Combined online/offline use

  • Bi-directional communication

  • Standard depth range 3000 m

  • Long-distance FSK-telemetry (>10000 m)

  • Low power consumption

  • Battery operated Underwater Unit, max. voltage of 5 V at the conductor cable

  • Electronics operate from -40°C up to +85°C

  • EC-conformity (CE) EN 50081-1, EN 50082-1

OPTIONS
  • Additional sensors of various parameters
  • Operational depth down to 6000 meters


TECHNICAL DATA
Pressure sensor 0 ... 3000 dbar ± 0.1% f.s.
Conductivity sensor 0 ... 65 ± 0.01 mS/cm
Temperature sensor -2 ... +32 ± 0.005°C
Measuring range velocity 0.1 ... 9.9 m/s
Accuracy velocity ± 1% (0.5 ... 9.9 m/s)
± 5% (0.1 ... 0.5 m/s)
Measuring range volume 0.0 ... 6500.0 m³
(net opening below 0.25 m²)
0.0 ... 65000 m³
(net opening above 0.25 m²)
Data sampling rate 1 Hz (one data set per second)
Data memory 16 MByte
Telemetry connector SUBCONN IL 2 M
Dimensions approx. 10 x 16 x 48 cm
Weight 7 kg
Material Titanium (pressure tube and battery pack),
stainless steel (flow meters)
Deck Command Unit Metal housing for use in 19"-rack
 or as table housing,
indication of sensor data,
battery status,
LCD-display with LED backlight,
interface for Personal Computer (RS 232),
power supply: 85 - 260 V AC
ORDERING INFORMATION
Products
450 100 Net Probe CTD with 2 Electronic
Flow Meters
incl. Deck Command Unit
