JUAL PACKING KLINGERIT
Perhatian!
Spesifikasi JUAL PACKING KLINGERIT

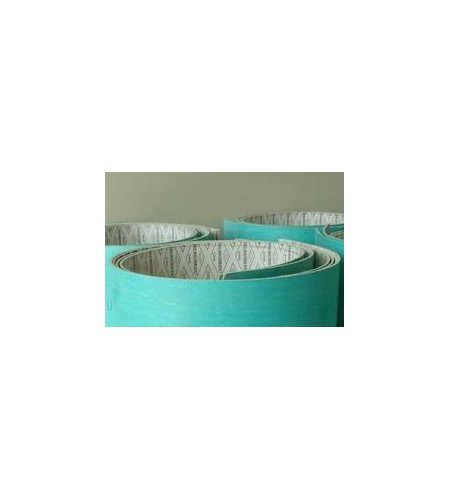

PACKING KLINGERIT Sealing
MATERIAL CATEGORIES : Packing Klingerit Universal Oil Resistant material of highest quality composed of long grade chrysotile asbestos fiber with NBR binder. Particulary suitable for use in aviation industry and with hot oil and thermal fluids.
COLOR BLUE: Max. Temperature : 550 ° C Max. Pressure : 140 Bar Min. Temperature : - 200 ° C Klingerit 1000 Top grade wire reinforced material for extreme service. Recommended for conditions of fluctuating pressure and temperature. Composed of chrysotile asbestos fiber bonded SBR and reinforce with close mesh steel wire.
COLOR BLACK Graphite Finish: Max. Temperature : 550 ° C Max. Pressure : 200 Bar Klingerit 100 High quality material for the oil and petro chemicals industries. Composed of chrysotile asbestos fiber with SBR.
COLOR GREY: Max. Temperature : 510 ° C Max. Pressure : 100 Bar Min. Temperature : - 200 ° C Klingerit 200 Medium quality material for general purpose use. Composed of chrysotile asbestos fibre bonded with SBR.
COLOR RED/BROWN: Max. Temperature : 400 ° C Max. Pressure : 40 Bar Klingersil C-4500 Premium quality Compressed synthetic fibre jointing composed of carbon fibres with NBR binder. Universal material with excellent steam, oil & chemical resistance. Particulaaly suitable for use in highly alkaline applications and applications requiring high load bearing characteristic. COLOR BLACK both sides Max. Temperature : 450 ° C Max. Pressure : 100 Bar Klingersil C-4430 High quality compressed synthetic fiber jointing based on glass fibers and NBR binder. Suitable for use with air, steam, oil, fuels, gases ( includeing oxygen) and portable water applications. COLOR One side white, one side green Max. Temperature : 440 ° C Max. Pressure : 100 Bar Klingersil C-4430 High quality compressed synthetic fiber jointing based on aramid fibers with NBR binder. Suitable for use with air, water, oils, fuels, gases. Particularly suitable for use in internal combustion engines, compressors and hydraulic systems.
COLOR GREEN Both Sides Max. Temperature : 400 ° C Max. Pressure : 100 Bar Klingersil C-4430 A general purpose non asbestos sheet for use on oils, water and gases. Highly recommended for use in automotive applications and general purpose applications in the petreochemical oil and gas industries.
COLOR GREEN Both Sides Max. Temperature : 300 ° C Max. Pressure : 50 Bar
PT. BOSINDO JAYA
Perusahaan kami bergerak dalam pengadaan dan pemasok material seperti PIPE, FITTINGS, FLANGE, VALVE, AKSESORIS PIPE, INSTRUMENT, STEEL KONSTRUKSI, RUBBER HOSE, dll untuk berbagai kebutuhan dari:
→ Oil & Gas Pipe Lines → Boiler → Kontraktor → Petrochemical → Pressure Vessel → Konstruksi Baja → Power Plant → Mining → Food & Beverage → Cemen Lining → Palm → Pabrik-pabrik → Jetty dll
Adapun material yang dapat kami supply sbb:
• OIL & GAS PIPE LINE
Pipa Carbon Steel Seamless & Welded: ASTM A106 Gr.B, A53 Gr.B, API 5L Gr.B, X42, X52
Pipa Stainless Steel Seamless & Welded: ASTM A312-TP 316/316L, 304/304L
Alloy Steel Pipe: A333 Gr. 1, 3, 6
Tubing CS & SS 316/304 Thikness 0.035” , 0.049” , 0.065” , 0.083” , 0.095”
• WATER LINE PIPE
Carbon Steel and Galvanis Pipes: ASTM A53 Gr.A, ASTM A120, A252 Gr.2, AWWA C200 c/w Hydraulic Test
• FITTINGS
Elbow, Equal Tee, Reducer Tee, Reducer Concentric, Reducer Eccentric, Sokolet, Weldolet, Threadolet, Plug, Cap dll.
Forged Fittings Class 3000 – 6000# SW, NPT A105/A350 LF2/A182 TP 316 & 304
Seamless and Welded Buttweld Fittings A234 WPB/A420 WPL6/A403, SS 316 & 304
• FLANGE
Forget Flanges A105, A350 LF2, A182 TP 316 & 304
Slip On Flange, Welding Neck Flange, Blind Flange, Socket Weld Flange, Lap Joint
ANSI 150#, 300#, 600#, 900#, 1500#, 2500#
JIS 10K, 20K dan PN Standard
• VALVE
Gate Valve, Ball Valve, Globe Valve, Check Valve, Butterfly Valve, Y-Strainer, Knife
Material : A216-WCB/A105, ANSI 150#, 300#, 600#, 900#, 2500#
• GASKET
Spiral Wound Gasket, Ring Joit, Steel Bestos, Power Bestos, Gland Packing dll.
• INSTRUMENT
Male Connector, Female Connector, union Connector, Reducing Union, Bulkhead Union, Cap and Plug, union Elbow, union Tee, union Cross, Needle Valve, Ball Valve, 2Way-3Way-5Way Manifold Valve, Tube Adapters, Nuts, Ferrule Set – Front & Back, Tube Cutter, Hand Tube Bender, Tubing
• RUBBER HOSE
Rubber Hose Industrial, Expantion Joint, Flexible Metalic Hose, Hidraulic Hose, Flexible Rubber Hose, Camlock, Quick Coupling, Fire Hose dll..
• STEEL KONSTRUKSI
H-Beam, IWF, Besi Siku, Channal U, CNP, INP, Assental, Plate Kapal, Pipa Kotak, Stainless Steel Plate SS 304/316/L, Boiler Plate dll
Untuk Informasi dan Keterangan segera hubungi Kami
djoni st
mobile : 0812 888 54 888
email : bosindojaya@gmail.com
