Spesifikasi Ovens DKN-DK-DKM Series Yamato Scientific

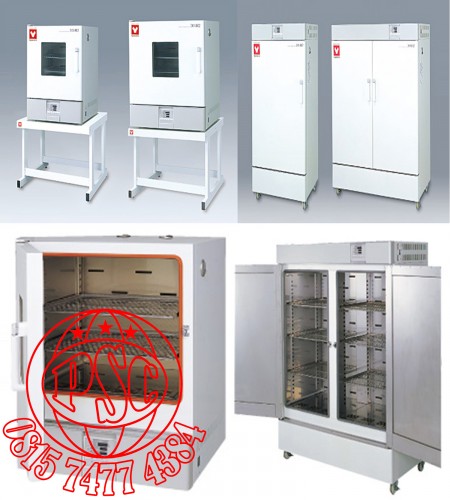

Industrial & Laboratory Constant Temperature Ovens Yamato Scientific

Model DKN 302, DKN 402, DKN 602, DKN 612, DKN 812, DKN 912

Specifications

Model

DKN302

DKN402

DKN602/612

DKN812

DKN912

Performance

Circulation method

Forced air circulation

Operating temp. range

Room temp.+10 to 260 ⁰C

Room temp.+10 to 250 ⁰C

Room temp.+10 to 210 ⁰C

Temp. control accuracy

±1.0 ⁰C ( at 210 ⁰C )

Temp. distribution accuracy

±2.5 ⁰C ( at 210 ⁰C )

Max. temp. reaching time

Approx. 90 min.

Approx. 60 min.

Components

Interior material

Stainless steel

Exterior material

Cold rolled steel plate with melamine resin baking finish

Heat insulating material

Glass wool

Heater

Stainless pipe heater

0.8 KW

1.2 KW

1.34 KW

1.2 KW x 2

1.5 KW x 2

Fan type

Scirocco fan, Condenser type

Motor

10 W

30 W

10 W x 2

Exhaust port/Cable port

30 mm l.D.×2 pcs.( the top ) /30 mm l.D.×1 pc. ( right side )

30 mm lD×2 pcs ( the back )/30 mm lD×1 pc ( right side )

Observation window

180 × 180 mm

250 × 280 mm

None

Controller

Temp. controller

3 patterns program controller, PID control by microprocessor

Temp. setting method

Digital setting by UP/DOWN key

Temp display method

Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED

Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.

Min. division

1 min. or 1 Hrs.

Operation function

Fixed temperature operation, Program operation, Auto start, Quick Auto-stop,

Program mode

Program operation : 3 pattern, 30 steps ( 30 steps×1, 15 steps×2, 10 steps×3 ) Pattern repeat function

Additional functions

Calibration off-set function, Key lock, Uninterruptible power for memory

Heater circuit control

SSR control

Sensor

K-thermocouple

Safe Device

Safety countermeasures

Self diagnosis functions ( temp. sensor abnormal, Heater disconnection, SSR- short,

Automatic overheating prevention ), Key lock function, Overheat prevention,

Electric leakage breaker with over current protection

Standard

Internal dim W × D × H mm

300 × 300 × 300

450 × 450 × 450

600 × 500 × 500

600 × 500 × 1,000

1,070 × 500 × 1,000

External dim W × D × H mm

410 × 451 × 670

560 × 601 × 820

710 × 651 × 870

710 × 651 × 1,608

1,180 × 651 × 1,616

Internal capacity

27 liters

90 liters

150 liters

300 liters

535 liters

Shelf plate with standard load

Approx. 15 kg/piece

Shelf rest step number

6 steps

9 steps

12 steps

29 steps

29 steps x 2

Shelf rest pitch

30 mm

Power source 50/60 Hz

100 V/220 V

100V/220 V

100V/200V/220V

200 V/220 V

200 V/220 V

Single phase,

Single phase,

Single phase,

Single phase,

Single phase,

8.5 A/3.9 A

12.5 A/5.7 A

14 A /7 A/6.4 A

12.5 A/11.4 A

15.5 A/14.1 A

Weight

Approx. 35 kg

Approx. 50 kg

Approx. 65 kg

Approx. 110 kg

Approx. 190 kg

Accessories

Shelf plate

Stainless steel, 2 pcs.

Stainless steel, 4 pcs.

Stainless steel, 8 pcs.

Shelf bracket

4 pcs. ( 1 pair - 2 pcs. is fixed )

8 pcs. ( Same as left )

16 pcs. ( 2 pairs are fixed )

* The performance shown here is the value under the condition of the ambient temperature of 23 ⁰C ±5 ⁰C, humidity of 65 % RH ±20 %.

* The projection is not included for Internal dimensions and External dimensions.
