Spesifikasi Rheometer DV3T Brookfield
|

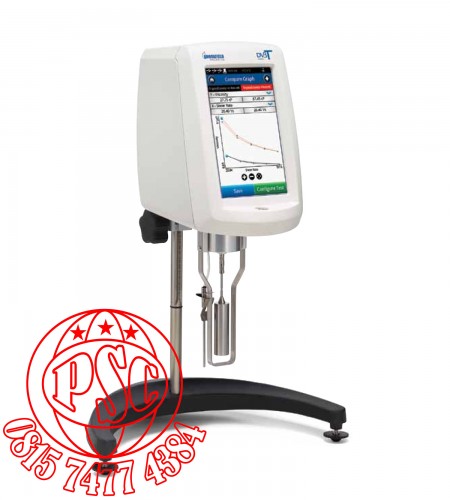

Rheometer DV3T Brookfield |
|
A Sophisticated Rheometer With Easy-To-Use Intuitive Controls |
|
A 7-inch full color touch screen conveniently displays all test parameters along with measured values for yield stress, viscosity and temperature. On screen graphing shows real-time test data which can be captured in stand-alone mode, recorded on a printer or sent to a PC. Built-in math models, such as Power Law, can provide rapid data analysis for flow index and other selectable variables. Quick, straight-forward, single point viscosity is also easily accomplished with the DV3T making it the ideal "all-in-one" instrument for busy QC labs as well as demanding R & D departments doing comprehensive flow behavior. |
|
Features & Benefits |
|
7-inch full color, touch screen display supports multiple languages |
|
Displayed info includes: viscosity ( cP/mP·s ), temperature ( °C/°F ), shear rate/stress, % torque, spindle/speed, step program status, math model calculations |
|
Enhanced Security with customizable user access, date/time stamp file, password access, portable log-in settings |
|
Built-In options include math modeling, yield tests, timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison |
|
Auto range shows maximum viscosity measured with any spindle/speed combination |
|
Analyze characteristics such as yield stress, flow curves, leveling and recovery |
|
Integrated temperature control with connection to a Brookfield TC series bath and AP Controller |
|
USB PC interface provides optional computer control and automatic data gathering capability ( included ) |
|
Download custom test programs with included PG Flash software |
|
PG Flash |
|
Front-facing bubble level for convenient viewing |
|
Built-in temperature probe |
|
Accuracy of ±1.0 % of range with displayed test data |
|
Repeatability of ±0.2 % |
|
NIST traceable viscosity standards available |
|
SPRING TORQUE |
|
DV-I SPRING TORQUE |
|
Each of our standard Laboratory Viscometers/ Rheometers are supplied with an internal spring used to calculate the viscosity of a material. These springs have different measuring capabilities: |
|
LV is for low viscosity materials and can measure the “thinnest†materials. Typical examples include inks, oils, and solvents. |
|
RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints. |
|
HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies. |
|
HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses. |
|
Additional special springs are also available upon request. To learn more about spring ranges and model selection, please call Brookfield AMETEK or one of our authorized dealers. |
|
Annual Calibration Service ( recommended ) |
|
We recommend that this instrument be returned to Brookfield or an authorized dealer on an annual basis for our Calibration & Certification Service. Having this annual maintenance done will ensure the instrument's long life and optimal performance. |
