Total Station Sokkia CX 52 Reflectorless With Dual Display
Perhatian!
Spesifikasi Total Station Sokkia CX 52 Reflectorless With Dual Display

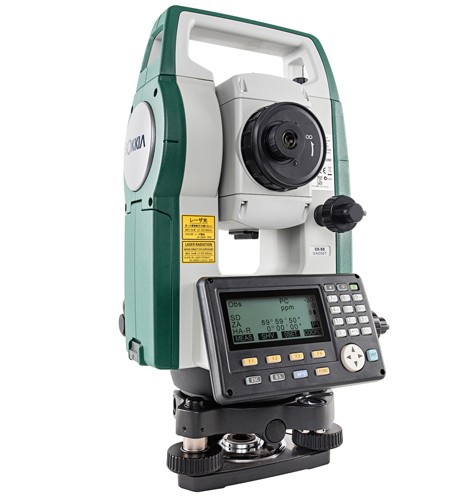

Total Station Sokkia CX 52 Reflectorless With Dual Display
Description : These rugged total stations offer Sokkia’s pinpoint precision and use reflectorless RED-tech™ EDM technology. Each total station measures up to 350 meters (1,148 feet) in non-prism mode and up to 4,000 meters (13,120 feet) with a prism. The coaxial EDM beam and laser pointer ensure fast, accurate aiming, and each total station provides an impressive distance measurement speed of 0.9 seconds. Sokkia’s original absolute encoders offer long-term reliability on the job site, and the dual-axis compensator produces stable measurements even when you’re working on uneven terrain. In addition to a waterproof/dustproof IP66 design, this total station features a red coaxial laser pointer, on-board survey software capable of storing up to 5,000 points, a 25-key keyboard with a 4-way directional backlit arrow key, a 15-hour battery life, and horizontal and vertical locking tangents.
Specifiactions : Telescope – Magnification/Resolving Power: 30x/2.5”; Length: 171mm; Objective Aperture: 45mm (48mm for EDM); Image: Erect; Field of View: 1°30’ (26m/1,000m); Minimum Focus: 1.3m; Reticle Illumination: 5 brightness levels. Angle Measurement – Display Resolution: 1”/5” (0.0002/0.001 gon, 0.005/0.02 mil); Accuracy: CX-52, 2”; CX-55, 5”; Dual-axis Compensator/Collimation Compensation: Working Range, ±6’ (±111 mgon). Distance Measurement – Laser Output (Reflectorless Mode): Class 3R/Prism/Sheet Mode: Class 1; Measuring Range: Reflectorless, 0.3m to 350m, One AP Prism, up to 4,000m; Display Resolution: Fine/Rapid, 0.001m/0.01 ft./1/8 in., Tracking, 0.01m/0.1 ft./1/2 in.; Accuracy: Reflectorless/Reflective Sheet, (3 + 2ppm x D) mm, AP/CP Prism, (2 + 2ppm x D) mm; Measuring Time: Fine, 0.9s (initial 1.7s), Rapid, 0.7s (initial 1.4s), Tracking, 0.3s (initial 1.4s). Interface: Serial RS-232C. Data Storage (Internal Memory): Approximately 5,000 points. Laser Pointer: Coaxial red laser using EDM beam. Levels – Graphic: 6’ (inner circle); Circular Level: 10’/2mm. Optical – Magnification: 3x; Minimum Focus: 0.3m from tribrach bottom. Operating Temperature: -20°C to 60°C. Power Supply: Li-ion rechargeable detachable battery (BDC46C). Operating Time: Approximately 15 hours. Dimensions: 7”W x 7.1”D x 13.7”H. Weight: 11.9 lbs.
Mitra Laser Survey
Dengan bermacam macam merk terkenal seperti :
* Total Station | Digital Theodolite | Automatic Level
Topcon, Nikon, Sokkia, Pentax, South, Leica, Sincon, Neolaser, Mysurv, CST Berger, Kolida, Minds
* GPS ( Global Positioning System )
Garmin, Trimble, Topcon, South, Spectra, Magellan
* Laser Meter / Meteran Laser
Neolaser, Line, Leica, Precaster, Bosch, Agatec, Robotoolz
* Kompas | Clinometer | Altimeter
Suunto, Brunton, Silva, Freiberg
* Teropong / Binoculars
Steiner, Hunter, Nikon, Bushnell, Celestron.
* HT / Handie Talkie | Radio Repeater
Motorola, Icom, Yaesu, Alinco, Suicom, Kenwood, SMP, Weierwei, Firscom
* Lainnya
Inmarsat, Ericson, Isatpone, Aces, Estwing, Lutron, Eutech, Mastech, Tajima Slant, dll.
