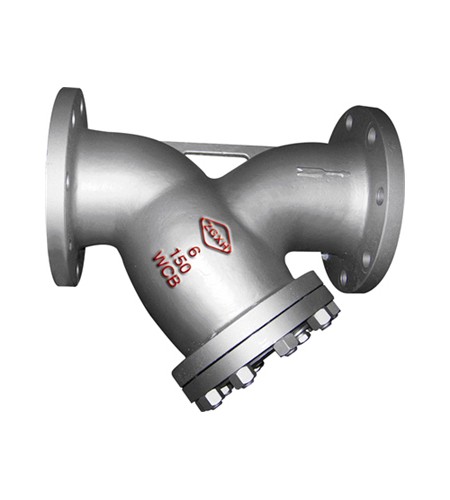

Y Pattern Strainer

Update Terakhir

10-11-2017

Dilihat Sebanyak

76 kali

Lokasi

Bali

Harga

Kontak Kami

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Y Pattern Strainer

Valve Type: Y Pattern Strainer Valves

Valve Size: 1/2” - 20”.
Valve Pressure Rating: Class 150 – 600.
Standards:

Design & Manufacture	ASME B 16.34
Face to Face	ANSI B16.10
Flange Ends Dimension	ASME B16.5
BW End Dimension	ASME B16.25
Pressure-temperature Ratings	ASME B16.34
Inspection & Test	API 598

Standard Material Specifications

Part Name		Material
1	Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
2	Screen	ASTM 182 F304	ASTM A 182 F304	ASTM A182 F316
3	Bonnet Bolt	ASTM 193 B7	ASTM 193 B8	ASTM 193 B8
4	Bonnet Nut	ASTM 194 2H	ASTM 194 8	ASTM 194 8
5	Gasket	Graphite+SS304	Graphite+SS304	Graphite+SS316
6	Bonnet	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M

Manufacturer: China Xinhai Valve Manufacturer Company

Sales Contact: Jeasin Lee

Sales E-mail: valves@xinhaivalve.com

China Xinhai Valve Manufacturer Company

Zhejiang Xinhai Valve Manufacturing Co., Ltd., located in Ouei, Wenzhou, China, is established in 1986. With over 20 years' China Zhejiang Xinhai Valve Manufacturing Co., Ltd.experience, now, the company becomes a professional valve manufacturer specialized in developing, manufacturing, and marketing valves, as well as high-quality services. It covers an area of 15000 square meters and has two subsidiary factories.

The industrial valves we manufactured include gate valves, check valves, globe valves, ball valves, butterfly valves, plug valves, strainer and other valves. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standards and the customers' special requirements. Our products have been marketed throughout the world, suitable for a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.

To introduce the international quality management system, Xinhai have got the approval of ISO 9001, API 6D, CE and Chinese AZ certification. Besides, Xinhai established a multi-functional phys-chemical lab to supervise the quality further from time to time and fitted out spectrum analyzer, portable spectrograph (PMI), material tester, impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, fugitive emission tester, and NDE testing equipment.

The primary target of Xinhai is to offer products and services of high quality, so that we will receive the highest degree of consumer satisfaction and fidelity. Both new and old customers are welcomed to set up a partnership with Xinhai to explore wider marketing opportunities and create a brighter future together!
