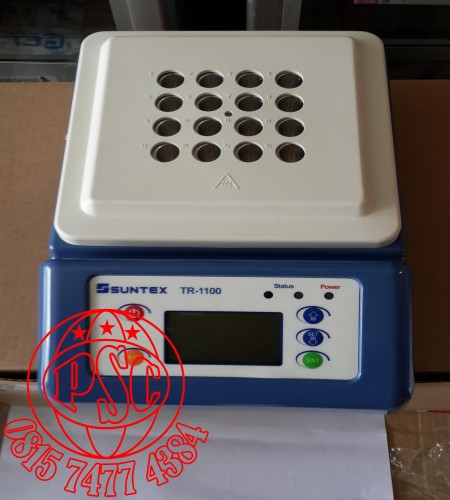

COD Thermoreactor TR-1100 Suntex Instrument
Perhatian!
Spesifikasi COD Thermoreactor TR-1100 Suntex Instrument
|
COD Thermoreactor TR-1100 Suntex Instrument |
||
|
Specifications |
||
|
Model |
TR-1100 |
TR-1100A |
|
Reactor type |
Dry temp control device |
|
|
Number of vial cells |
16 cells shafts for reaction cell 16 mm ±0.2 mm |
|
|
Temp. setting |
100 ˚C, 120 ˚C, 150 ˚C, via fixed programs, and 50 ˚C to 199 ˚C user setting |
|
|
Controlling accuracy |
±1 ˚C ( ±1 digit ) |
|
|
Temp. stability |
±1 ˚C |
|
|
Heating rate ( with empty thermoblock ) from 25˚C to |
100 ˚C approx. 5.5 min |
100 ˚C approx. 5 min |
|
120 ˚C approx. 7.5 min |
120 ˚C approx. 6 min |
|
|
150 ˚C approx.10.5 min |
150 ˚C approx.9 min |
|
|
165 ˚C approx.12.5 min |
165 ˚C approx.11 min |
|
|
199 ˚C approx. 16.5 min |
199 ˚C approx. 15 min |
|
|
Pre-stored programs |
165 ˚C / 20 min. |
|
|
150 ˚C / 2 hour |
||
|
150 ˚C/ 20 min |
||
|
120 ˚C / 2 hour |
||
|
120 ˚C / 1 hour |
||
|
120 ˚C / 30 min |
||
|
100 ˚C / 1 hour |
||
|
Programmable temp. range |
50 ˚C to 199˚C |
|
|
Programmable time range |
0-18 hours, Audio signal and heating stopped when the time expired |
|
|
Temp. correction |
±9 ˚C adjustment for thermoblock |
|
|
Ambient temp. |
10~50 ˚C |
|
|
Overheating protector |
Yes |
|
|
Power supply |
110 VAC ±10 %, 50/60 Hz |
220 VAC ±10 %, 50/60 Hz |
|
Power consumption |
290 W |
250 W |
|
Dimension ( L x W x H ) |
320 x 210 x 103 mm |
|
|
Weight |
Approx. 3 kg |
|
|
Precise digital temperature control & safety-first design |
||
|
The TR-1100 features seven pre-set common programs to ease the lab work. It also allows an user-tailored program for repeated custom procedures. The digital display provides precise temp. setting. |
||
|
Safety-first philosophy design |
||
|
Hot warning status light : to indicate heating progress |
||
|
PPS board on the top to minimize risk of scald |
||
|
Auto stop & buzzler alarm when end of running time |
||
|
Overheating protection safety device : Automatic heat cutoff when the heating temp. is over 220 ˚C |
||
|
Splash resistant design : Avoiding sample permeating from panel |
||
|
Features |
||
|
Ideal tube tests for COD, TOC, Total nitrogen, total phosphate, total phosphate, total chromium, etc. |
||
|
COD and specialized tasks in wastewater treatments and laboratories |
||
|
PPS board fully insulated heater block |
||
|
Program started with auto or manual mode selectable after pre-heating |
||
|
Auto stop when end of running time |
||
|
Easy and friendly to use |
||
|
Large LCD screen with status LED indicator |
||
|
Sound alarm to indicate complete of digestion |
||
|
Seven pre-stored and one user defined programs with pre-heating function |
||
|
Automatically back to last mode when powering on |
||
|
Overheating protection device |
||
