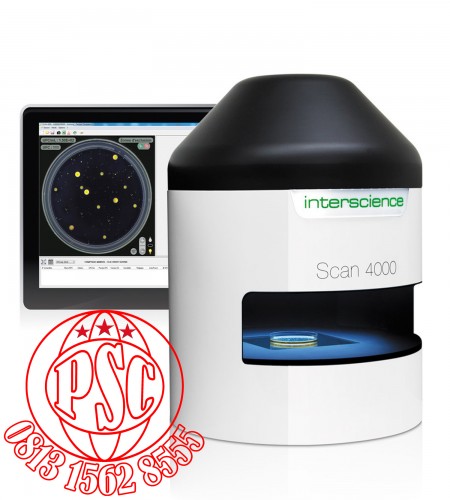

Colony Counter Automatic Ultra-HD Scan 4000 Interscience

colony Counter Automatic Ultra-HD Scan 4000 Interscience

Key Features

1. HIGH QUALITY

Stainless steel body

Ultra HD color camera

Digital zoom x 64

Resolution : 5 mega-pixels

Counting : 1000 colonies per second

colony minimum size : 0.05 mm

2. THE LARGEST READING RANGE ON THE MARKET

Round Petri dishes from ø 55 to ø 150 mm

Square Petri dishes of 120 mm

Chromogenic Petri dishes

PetriFilmTM

Compact DryTM

Filtration membranes

3. UNEQUALLED LIGHTING

360° LED lighting, without reflection or shadow of the dish with White Dome

CCD 5 megapixels camera, detects bare eye invisible details

Beam Splitter to ensure lighting 100% without reflections or shadows

Automatic detection of the dish + reading on 100% of the dish

4. SOFTWARE EFFICIENCY

All functions in 1 window

Automatic optimization of the contrast, luminosity and sensitivity

Automatic corrections of the agar defects

Automatic separation of confluent colonies

Automatic elimination of counting grids

Cross on each counted colony

Polygonal exclusion areas

Pre-set medias: PCA/TSA, MRS, VRBL, TBX, TSC, Baird Parker, GVPC, L.Mono, YM

5. INHIBITION ZONES

Rapid detection : up to 16 antibiotic sensitivities per dish in 1 click

3 diffusion modes : paper disks (all brands), wells, peni-cylinders

Inhibition zones and agar wells can be manually added or deleted

Built-in antibiotic database : CA-SFM ( French Society of Microbiology ), EUCAST ( European Committee on Antimicrobial Susceptibility Testing )

Reads on : Muller Hinton agar, blood agar, chocolate agar

Accuracy of inhibition zone measurement: 0.1 mm

6. FULL TRACEABILITY

Harmonization of the results within a team

Automatic archiving and printing of data: pictures, comments & results

External traceability ( Session saved, Excel™, PDF, JPEG, BMP, Scan® printed report )

Internal traceability ( Barcode, file archive, LIMS connection )

Securization of the sessions ( Compliance with CFR 21 part 11: system securization, operational controls and documentation management )

7. EXCELLENT REPRODUCIBILITY AND REPEATABILITY

GLP (Good laboratory Practice)

In compliance with :

CFR 21 part 11

ISO 7218

ISO 4833-2

NF V08-034

AOAC 977.27

FDA-BAM standards

Scan® SOFTWARE

Scan automatic colony counters use an exclusive software developped by INTERSCIENCE: evolutive, user-friendly and powerful.

There are numerous advantages in using Scan counting software :

- only one clic to count

- only one setting cursor

- Traceability: automatic saving of data, Excel™ export

To try the demo version with your samples, please identify below or register here

Download Scan® Demo Software

1. VISUALISATION WINDOW

Detected colonies are highlighted and marked with a cross.

2. PARAMETERS WINDOW

only one cursor to optimize counting. customizable settings adaptable to any kind of agar.

3. RESULTS WINDOW

All previously recorded data can be checked anytime.

EASY DATA EXPORT

Scan software provides easy ways to export quickly your results:

- Work sessions saving

- PDF export

- JPEG, BMP export

- Results exported to Excel™

- Scan printed report

EXAMPLE OF A SCAN PRINTED REPORT

Check in a glance images before and after counting, complete sample information, comments and results.

Specifications

Scan 4000

Reference

438 000

Camera

Ultra HD CCD color camera

Lens

Ultra HD japanese lens

Digital zoom

x 69

Resolution

5 megapixels

Counting time

1000 colonies per second

Minimum size colony

0.05 mm

Lighting

White LED dome

Lighting system

Automatic : 7 combinations, top and/or bottom light white or black background

Counting

Automatic, with manual control

Counting on Petri dishes

Square and round Petri dishes ( 55-150 mm )

Counting on pour, surface, Spiral and circle plated dishes

√

Counting on chromogenic dishes

√

Inhibition zone reader

√

Inhibition zone measurement accuracy

0.1 mm

Reads on

Muller Hinton agar, blood agar, chocolate agar

Counting on PetriFilm™

√

Counting on Compact Dry™

√

Counting on filtration membranes

√

Automatic detection of paper disks, agar wells, peni-cylinders

√

Results /Data export

Recountable Scan session, PDF report, JPEG, PNG, BMP, Excel™

Color detection

7 colors on the same dish

LIMS/SIL connection

√

USB connection

√

Languages

English, French, Japanese, Chinese, Russian, Spanish, German

Dimensions ( W x D x H )

47 x 47 x 64 cm

Weight

25 kg

Voltage

100-240 V ∼ 50/60 Hz

Power

140 W

Processor

Intel ( Quad core recommended ) Intel i5 or i7 or AMD FX 6000 and superior

Operating systems

Windows™ 7 Service Pack 1 or Windows™ 8 or 10

Frequency

2.4 Ghz or superior

RAM

4 Go or better

Graphic card

AMD  or NVIDIA ( chipsets are not recommended )

Equipment

USB 2.0 port / CD-ROM reader

Screen

1280 x 1024 pixels and more

Computer

Desktop computer recommended

Hardware

Stainless steel

Software update ( after registration )

3 years

Guarantee ( after registration )

3 years

In compliance with

GLP (Good laboratory Practice), CFR 21 part 11, ISO 15189, ISO 7218, ISO 4833-2, NF V08-034, NF V08-100, AOAC 977.27, FDA-BAM standards
