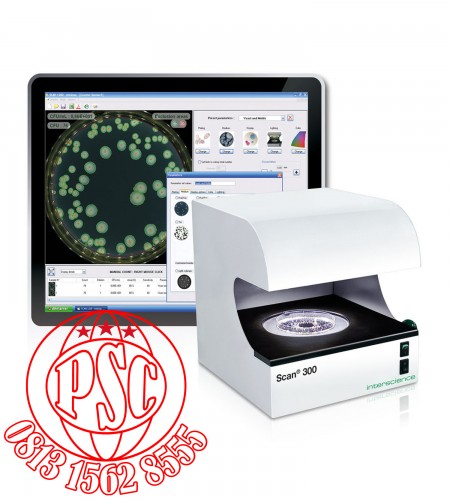

Colony Counter Automatic Scan 300 Interscience
Perhatian!
Spesifikasi Colony Counter Automatic Scan 300 Interscience
colony Counter Automatic Scan 300 Interscience |
Key Features |
1. HIGH RESOLUTION AND PERFORMANCE |
Minimum colony size : 0.1 mm |
1000 colonies CFU detected in 1 second |
Live image ( zoom x 28 ) |
Counts 30 dishes in 5 minutes ( in real conditions with presettings ) |
2. COUNTS ON : |
3. SOFTWARE EFFICIENCY |
|
All functions in 1 window |
|
Automatic optimization of the contrast, luminosity and sensitivity |
|
Automatic corrections of the agar defects, separtion of confluent colonies, elimination of counting grids |
|
Cross on each counted colony |
|
Polygonal exclusion areas |
|
Automatic adjustment of the counting area |
|
Automatic settings for more than 20 pres-set media ( PCA/TSA, MRS, VRBL, TBX, TSC, Baird Parker, GVPC, L.Mono, YM more…) |
|
4. FULL TRACEABILITY |
|
Harmonization of the results within a team |
|
Automatic archiving and printing of data: pictures, comments & results |
|
External traceability ( Session saved, Excel™, PDF, JPEG, BMP, Scan® printed report ) |
|
Internal traceability ( Barcode, file archive, LIMS connection ) |
|
Securization of the sessions ( Compliance with CFR 21 part 11 : system securization, operational controls and documentation management ) |
|
5. EXCELLENT REPRODUCIBILITY AND REPEATABILITY |
|
GLP ( Good laboratory Practice ) |
|
CFR 21 Part 11 |
|
Scan® SOFTWARE |
|
Scan® automatic colony counters use an exclusive software developped by INTERSCIENCE : evolutive, user-friendly and powerful |
|
There are numerous advantages in using Scan® counting software : |
|
only one clic to count |
|
only one setting cursor |
|
Traceability : automatic saving of data, Excel™ export |
|
To try the demo version with your samples, please identify below or register here |
|
Download Scan® demo software |
|
1. VISUALISATION WINDOW |
|
Detected colonies are highlighted and marked with a cross. |
|
2. PARAMETERS WINDOW |
|
only one cursor to optimize counting. customizable settings adaptable to any kind of agar. |
|
3. RESULTS WINDOW |
|
All previously recorded data can be checked anytime. |
|
EASY DATA EXPORT |
|
Scan software provides easy ways to export quickly your results: |
|
Work sessions saving |
|
PDF export |
|
JPEG, BMP export |
|
Results exported to Excel™ |
|
Scan® printed report |
|
EXAMPLE OF A SCAN® PRINTED REPORT |
|
Check in a glance images before and after counting, complete sample information, comments and results. |
|
Specifications |
|
Scan® 300 |
|
Reference |
436 300 |
Camera |
CMOS color camera |
Lens |
M12 lens |
Digital zoom |
x 28 |
Resolution |
1 megapixels |
Counting time |
1000 colonies per second |
Minimum size colony |
0.1 mm |
Lighting |
Long-life white LEDs / Dark Field |
Lighting system |
Automatic : 6 combinations, top and/or bottom light white or black background |
Counting |
Automatic, with manual control |
Counting on Petri dishes |
55-90 mm |
Counting on pour, surface, Spiral® and circle plated dishes |
√ |
Results /Data export |
Recountable Scan® session, PDF report, JPEG, PNG, BMP, Excel™ |
LIMS/SIL connection |
√ |
USB connection |
√ |
Languages |
English, French, Japanese, Chinese, Russian, Spanish, German |
Dimensions ( W x D x H ) |
28,5 x 26,5 x 29 cm |
Weight |
8,4 kg |
Voltage |
100-240 V ∼ 50/60 Hz |
Power |
20 W |
Processor |
Intel ( recommended ) AMD Phenom or better |
Operating systems |
Windows™ 7 Service Pack 1 or Windows™ 8 or 10 |
Frequency |
2 Ghz or superior |
RAM |
3 Go or better |
Graphic card |
AMD or NVIDIA ( chipsets are not recommended ) |
Equipment |
USB 2.0 port / CD-ROM reader |
Screen |
1280 x 1024 pixels and more |
Computer |
Desktop computer recommended |
Hardware |
Stainless steel |
Software update ( after registration ) |
1 year |
Guarantee ( after registration ) |
1 year |
