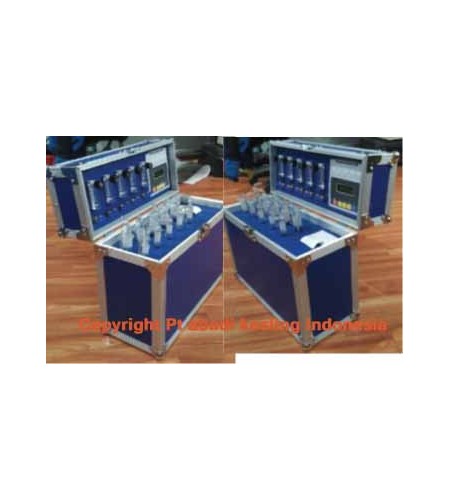

AMBIENT GAS IMPINGER SAMPLER, AKI-1042-AGIS
Gambar Produk
AMBIENT GAS IMPINGER SAMPLER, AKI-1042-AGIS
Update Terakhir
09-02-2021
Minimum Pembelian
1 UNIT
Dilihat Sebanyak
258 kali
Lokasi
DKI Jakarta - Jakarta Timur - Ciracas
Harga
Kontak Kami
Bagikan
+ Penawaran
Spesifikasi AMBIENT GAS IMPINGER SAMPLER, AKI-1042-AGIS
| AMBIENT GAS IMPINGER SAMPLER | |||||||||||||||||||||
| Type | : | AKI-1042-AGIS | |||||||||||||||||||
| Product | : | A & KI LAB | |||||||||||||||||||
| Fungsi | : | Untuk mengambil sampel gas di udara Ambient dengan metode basah (Sesuai absorbent) | |||||||||||||||||||
| Spesifikasi : | |||||||||||||||||||||
| 1 | Diaphragm Pump | ||||||||||||||||||||
| - | Power | : | 7W | ||||||||||||||||||
| - | Rated current | : | ≤500mA | ||||||||||||||||||
| - | Degree of vacuum | : | 50KPA | ||||||||||||||||||
| - | Pressure | : | Gas 100Kpa | ||||||||||||||||||
| - | Flow: | : | Gas 3.2LPM | ||||||||||||||||||
| - | Noise: | : | ≤55 dB | ||||||||||||||||||
| 2 | Barometric Pressure sensor | ||||||||||||||||||||
| - | Pressure range | : | 300 … 1100 hPa (equiv. to +9000…-500 m above/below sea level) | ||||||||||||||||||
| - | Relative accuracy | : | ±0.12 hPa, equiv. to ±1 m (950 … 1050hPa @25°C) | ||||||||||||||||||
| - | Absolute accuracy | : | typ. ±1 hPa (950 ...1050 hPa, 0 ...+40 °C) | ||||||||||||||||||
| - | Temperature coefficient offset | : | 1.5 Pa/K, equiv. to 12.6 cm/K, (25 ... 40°C @900hPa) | ||||||||||||||||||
| - | Current consumption | : | 2.7μA @ 1 Hz sampling rate | ||||||||||||||||||
| - | Temperature range | : | -40 … +85 °C | ||||||||||||||||||
| - | RoHS compliant, halogen-free | ||||||||||||||||||||
| 3 | Spesifikasi Thermal Printer : | ||||||||||||||||||||
| - | Printing method | : | Thermal | ||||||||||||||||||
| - | Resolution | : | 8 dots / mm , 384 dots / line | ||||||||||||||||||
| - | Effective print width | : | 48mm | ||||||||||||||||||
| - | Character set | : | ASCII, GB2312-80 | ||||||||||||||||||
| - | Print fonts | : | ANK: 5 x 7 | ||||||||||||||||||
| - | Paper type | : | Thermal paper | ||||||||||||||||||
| - | Paper width | : | 57.5 +/- 0.5mm | ||||||||||||||||||
| - | Roll diameter | : | 30mm ( max ) | ||||||||||||||||||
| - | Reliability | : | Mean Cycle Between Failure ( MCBF ) 500 million lines | ||||||||||||||||||
| - | Interface | : | Serial ( RS-232, TTL ), parallel | ||||||||||||||||||
| - | Embed depth | : | 43mm | ||||||||||||||||||
| - | Power supply ( Adapter ) | : | DC 5V - 9V | ||||||||||||||||||
| - | Installation port size | : | 77 x 53mm | ||||||||||||||||||
| - | Operating temperature | : | 5 deg.C – 50 deg.C | ||||||||||||||||||
| - | Humidity | : | 10 percent to 80 percent | ||||||||||||||||||
| - | Storage temperature | : | -20 deg.C – 60 deg.C | ||||||||||||||||||
| - | Storage humidity | : | 10 percent to 90 percent | ||||||||||||||||||
| 4 | Kelembaban dan temperatur sensor | ||||||||||||||||||||
| - | Power supply | : | 3.3-5.5V DC | ||||||||||||||||||
| - | Sensing element Polymer humidity capacitor | ||||||||||||||||||||
| - | Operating range humidity | : | 0-100%RH | ||||||||||||||||||
| - | temperature | : | -40~80Celsius | ||||||||||||||||||
| - | Accuracy humidity | : | +-2%RH(Max +-5%RH); temperature +-0.5Celsius | ||||||||||||||||||
| - | Resolution or sensitivity humidity | : | 0.1%RH; temperature 0.1Celsius | ||||||||||||||||||
| - | Repeatability humidity | : | +-1%RH; temperature +-0.2Celsius | ||||||||||||||||||
| - | Humidity hysteresis | : | +-0.3%RH | ||||||||||||||||||
| - | Long-term Stability | : | +-0.5%RH/year | ||||||||||||||||||
| - | Interchangeability fully interchangeable | ||||||||||||||||||||
| 5 | Fitur | ||||||||||||||||||||
| - | Dilengkapi Controller dengan LCD 4 baris @ 16 karakter untuk 'menampilkan RH, | ||||||||||||||||||||
| temperature dan Pressure dan untuk setting2 | |||||||||||||||||||||
| - | Dapat di atur waktu start secara bersamaan dan 'berhenti secara acak setiap pompa | ||||||||||||||||||||
| - | Dilengkapi Sensor Temperature, RH dan barometric pressure | ||||||||||||||||||||
| - | Dilengkapi Printer Thermal | ||||||||||||||||||||
| - | Dapat di print out Pembacaan Sensor sebanyak sampling yg di atur pada controller | ||||||||||||||||||||
| - | Print out settingan waktu gas sampling setiap glass impinger | ||||||||||||||||||||
| - | Dilengkapi rotameter yang dilengkapi valve di setiap pump dengan | ||||||||||||||||||||
| spesifikasi | : | Tekanan pompa vacuum dapat di atur dengan potensio | |||||||||||||||||||
| : | multiputar presisi, yg dapat diputar lebih dari satu putaran | ||||||||||||||||||||
