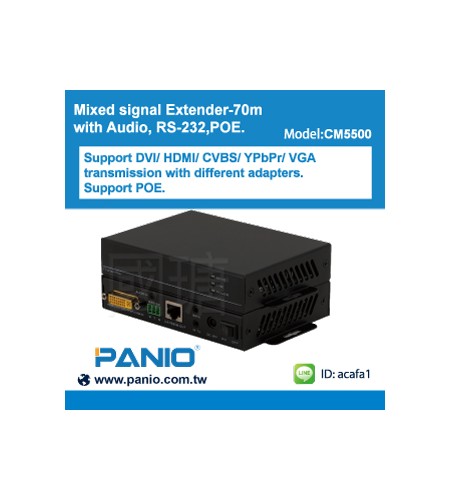

CM5500 HD beset Extender with Audi RS232 and POE

CM5500 is an HDBaseT technology extender, it supports no compression, no losses, no latency HDMI signal transmission.

With DVI-I interface design , it can support DVI/ HDMI/ CVBS/ YPbPr/ VGA transmission with different adapters.

All the signals are transmitted by one single CAT5E/ CAT6/ CAT7 cable, for 1080P it can transmit to a distance of 70m(230ft), for 4K30Hz, it can up to 35m(115ft).

Compatible with all the HDTV resolutions, HDMI1.4a protocol.

It also support bi-directional RS232 and IR transmission and realize the long distance control.

Supports power over cable, users only need to power one side;

Supports Audio embedded and de-embedded function, it can help users to have more choice whether the internal or external audio input and output;

Supports EDID management, it provides users a wider way to work with different displays.

It also supports scaler function, such as users can have HDMI signals input to the transmitter, but output can be VGA output with audio de-embedded.

It has been popularly used in media conferencing room, school, government, cinema and so on applications.

Features

1.Transmit highest quality audio and video, for 1080p can up to 220/ 330 feet and 4K can up to 110/ 165 feet with Cat6/6a/7 cable

2.Highest resolutions supported up to 4K2K 30Hz

3.Equipped with EDID management capability

4.Bidirectional IR/Serial control signal transmission

5.Power over Cable (POC) locally powered over Cat5e/6 cable at either end

6.Supports 7.1 DTS Master HD, Dolby True HD,

7.Audio embedded and de-embedded
