Jual Fusion Splicer Ilsintech Swift K11 Optical Fiber
Perhatian!
Spesifikasi Jual Fusion Splicer Ilsintech Swift K11 Optical Fiber
Detail Produk Fusion Splicer Ilsintech Swift K11 Optical Fiber
Swift K11 Core to Core Alignment

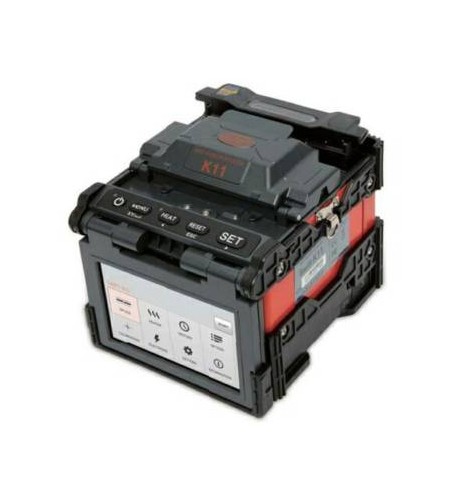

Fusion Splicer Ilsintech Swift K11 is the advanced typical core alignment type fusion splicer for the medium & long range optical circuit LAN, CATV, FTTx with world-fastest in splicing & sleeve heating time. It delivers high precision performance with extremely low loss.
Benefits and Features
IPAAS Technology Basis Core Alignment
Swift K11 is the core alignment splicer based on the IPAAS (Image Pattern Analysis Alignment System) Technology. The fine pixel technology perfects lowest splice loss in average
Compact, Lightweight and Fast
This splicer is one of the smallest, lightest and fastest among all the existing core alignment splicers.
Dimension : 143(W) x 163(L) x 140(H) l Weight : 2.25kg l Splicing Time : 6 seconds
Tube heat : 9sec(IS-45 Sleeve, IS-45mode),13sec(IS-60 Sleeve, IS-60mode),
Resistance to Shock, Dust and Water
The splicer with high reliability has stable performance even in a harsh environment
Shock-Free Fall : 76cm from 5 sides / Waterproof : IPx2 / Dustproof : IP5x
Powerful Lithium Polymer Battery with Large Capacity
Performs 300 cycles of fusion splicing and sleeve heating with the standard battery
5 inch Color LCD Monitor with Touch Screen
Magnification : 200X, Max 400X
For user’s convenience, LCD monitor has been designed with touch screen in addition to the operation keys.
Bidirectional Operation System
For user’s ergonomic preference, the screen can be turned around for one’s chosen viewing direction.
Equipped with Sleeve Loader to Prevent Contamination and to Provide Convenience
While working in a manhole, the loader prevents the supplementary sleeve from falling and being contaminated.
Working in aerial space such as telephone pole, the loader also prevents the supplementary sleeve from falling down.
Auto-Calibration
Detects the surrounding environment of temperature, humidity, air pressure and measure discharge calibration rate automatically.
Compatible with Fusion Splice-On Connector(SOC) in accordance with the Industrial Standard
MS-01, the manual stripper for Swift Connector
