Spesifikasi Jual Murah Optical Fiber Fusion Splicer INNO View 3 | klik Disini
Detail Produk Optical Fiber Fusion Splicer INNO View 3 Splicing

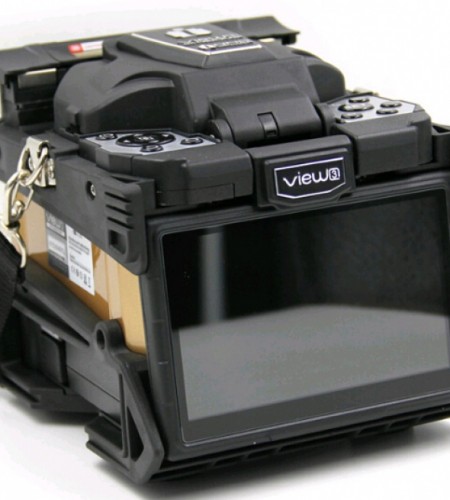

Optical Fiber Fusion Splicer INNO View 3 Splicing Alat sambung serat Optik
FEATURES :
Active V-Groove Clad Alignment Splicing Method
The World’ s Highest Magnification and Resolution
5” High-Resolution Color LCD Touch Screen
User-friendly Smart GUI
Double Tap to Zoom in & out
Detachable SOC Holder and Heating Oven
High Capacity Battery
3 Bright LEDs and Illuminated Keypads
For Dark Environment
Ceramic Clamp for Improved Durability
Easy to Replace Electrodes
Protective Cover
Harsh Weather Conditions Adaptability
1.95kg weight ( without battery)
Specification :
| Model | View 3 |
|---|---|
| Dimension | 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper) |
| Weight | 2.31KG (with battery) / 1.95KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB(ITU-T Standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / Auto mode : 9 sec |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 30 sec |
| Results Storage | The last 2000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
