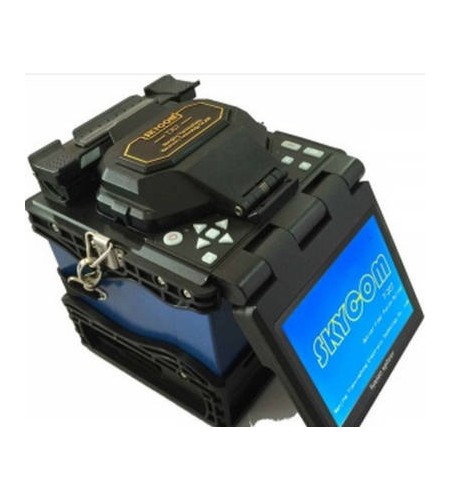

Detail Produk Optical Fiber Fusion Splicer Skycom T207
Optical Fiber Fusion Splicer Skycom T207 digunakan untuk menggabungkan dua serat optik end-to-end menggunakan panas, untuk memadukan kedua serat tersebut secara bersamaan
sedemikian rupa sehingga cahaya yang melewati serat tidak terpencar atau dipantulkan kembali oleh sambatannya, dan karenanya
sambatan dan daerah sekitarnya hampir sekuat serat perawan itu sendiri.
Highlights:
Display: 5 inches high resolution colorful LCD monitor
Average Splice Time: 10 second
Average Tube-heat Time: 30 second
Lithium Battery: up to 180 times of continous splice and heat
Magnification: Simultaneous X and Y views with 300 times
X or Y can be viewed separately
Splicing Mode: Auto & Manual & Full-Automation
Storage: up to 6.000 groups of splice results
USB Terminal
New developed technology providing wind and dust resistance
New technology of fiber core aligment, enhanced accuracy
New 3-in-1 cutting fixture for rubber-insulated wire (patented)
Brand: SKYCOM
Code: T-207
Negara Asal: China
Applicable Fibers: SM, MM, NZ-DS, EDF , Pigtail, Rubber-insulated wire Series
Average Splice Loss: 0.02dB( SM) , 0.01dB( MM) , 0.04dB( NZDS) , 0.04dB( EDF)
Return Loss: e60dB
Tension Test: 2.0N( 200gf) Standard
Typical splicing/ heating time: 10sec/ 30sec
Splicing Program: 50 groups
Protection Sleeve Length: 20mm, 40mm, 60mm
Language: English
Operating condition:
-10+ 50 degree ( operation temperature) , 0 95% RH( humidity) , 0 5000m( altitude)
Power Supply:
AC100 240V input voltage, 50/ 60H
Lengkap aksesoris + Cleaver + Stripper + Spare Elektroda.
