Spesifikasi Vibration Meter for Machine PCE-VM 25 || Vibration Meter PCE-VM 25 , Jual Vibration Meter

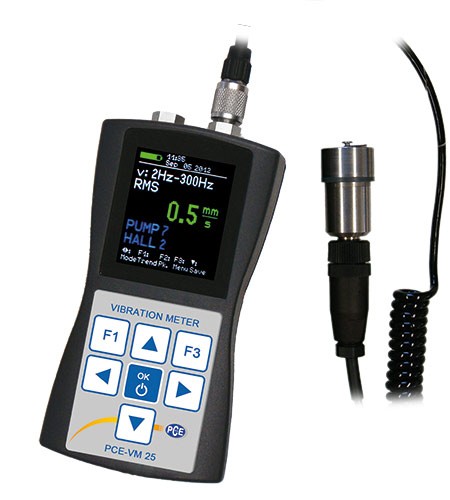

Vibration Meter for Machine PCE-VM 25 || Vibration Meter PCE-VM 25 , Jual Vibration Meter
Model : PCE-VM 25
Brand : PCE Instruments
Fungsi : Alat ukur getaran mesin atau monitoring getaran mesin
Technical Specifications
Vibration acceleration | 0.1 ... 240 m/s², 0.2 Hz ... 10 kHz, 3 Hz ... 1 kHz, 1 kHz ... 10 kHz |
Vibration velocity | 0.1 ... 1000 mm/s, 2 ... 300 Hz, 10 ... 1000 Hz |
Vibration displacement | 0.01 ... 60 mm, 2 ... 300 Hz |
Diagnosis Parameter K(t) for roller bearing | 1 ... 10 kHz, with data storage for 1600 initiation values (eff. / peak) |
Effective Value Measurement | Yes |
Peak Value measurement | Yes |
Crest Factor Measurement | Yes |
Measurement Accuracy (oscillation) | ±5%, ±2 digits |
Revolution Measurement | 1 ... 9999 rpm, optical |
Temperature Measurement | -40 ... +125 °C / -40 ... 257 °F ±2 K, infrared |
Frequency Analysis | 125 lines FFT; Acceleration / Speed 7 frequency ranges 2 to 11712 Hz |
Output for headphones | 3.5mm via adapter VM2xHP, volume adjustable |
Interface | USB |
Data storage for measured value | 16000 values, opt. computer software to administer measured data and measurement slots |
Display | OLED Graphic Display; Colored; 128 x 160 pixels |
Voltage Supply | 3 x LR03 / HR03 / AAA batteries or NiMH batteries, operation time 8 ... 12h |
Operation Temperature | -20 ... +60 °C, <95 % air humidity without condensing |
Dimensions | 125 mm x 65 mm x 27 mm / 4.9 in x 2.6 in x 1.1 in |
Weight | 140g / 0.3 lbs with batteries, without sensors |
Technical Specifications |
Output | Low Power IEPE |
Piezo System | Shear Principle |
Nominal Sensitivity | 3.5mV/ms-2 |
Sensitivity for Irrelevant Parameters | <5% |
Dimensions | Ø 21 mm / 0.8 in, height 34 mm / 1.3 in (without socket) |
Weight | 53g / 1.8oz |
Operation Temperature | -20 ... +80 °C / -4 ... 176 °F |
Sensor Cable | Spiral Cable, Stretched length approx. 1.6 m / 5.2 ft, Ø 4 mm / 0.15 in |
VMID recognition of measuring slot | digital, one-time 16-digit hexa decimal number, read-out via sensor foot, enclosure of stainless steel Ø 25 mm, height 15 mm, 45 g, montage: two-components epoxy adhesive |
General Information on VMID-measurement locations | |

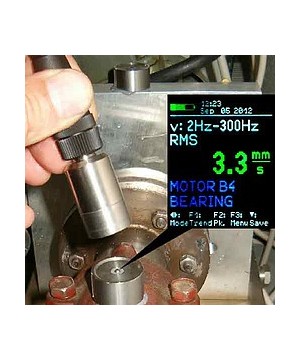

There can be optionally VMID measuring point used for the analysis. These are magnetic coupling parts made of stainless steel, that have a digital serial number. This serial number can be transferred through a read-out contact inside the sensor's bottom via the sensor cable. By using these fixed measuring points it is guaranteed that the relevant locations can be measured again and again. |
