Ovules and Suppositories Disintegration System 302-OV Ethik

Ovules and Suppositories Disintegration System 302-OV Ethik Technology

Technical Specifications

Temp. range

Amb +5 °C to 50 ºC

Temp. control resolution

± 0,1

Temp. uniformity at 37 ⁰C

± 0,5

Digital Timer

Programmable up to 99h

Output

4 to 20 ma

Heating system

Stainless steel tubular resistance

Eletrical specs

110 V or 220 V 50 Hz/60 Hz

Protection grade

IP 20

Included Accessories & Components

Operation manual

RBC Calibration Certificate, for temperature controller

Connection for Data Logger ( 4 to 20 mA )

5,000 ml glass vessel for disintegration device ( inter- changeable )

Optional

IQ and OQ protocols

Ovules and Suppositories Disintegration System 302-OV information

Model

Width mm

Depth mm

Height mm

Electrical Specs W

Weight kg

302-OV

540

340

550

700

30

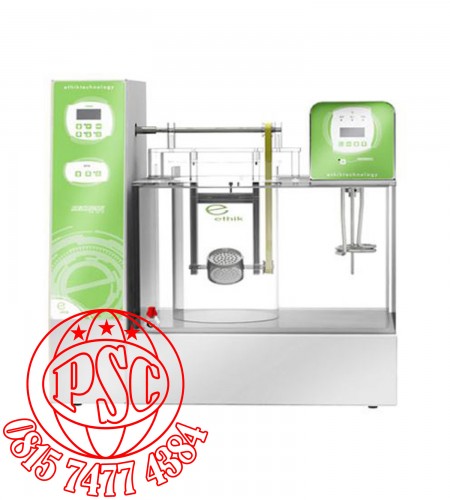

Product description

Equipment developed for disintegration tests on ovules and sup- positories simulating the real human body conditions, with high preci- sion and technology microprocessor controller

Externally : corrosion resistant treatment and epoxy powder coated.

Technical Characteristics

Temperature control and reading through PT100 sensor with 0,1 ⁰C

Microprocessor electronic digital timer. Sound alarm at end of test time; multiple configuration setting with manual or automatic adjust- ments

Immersion heater and circulator module guarantees temperature stability of the water bath and no vibration

Magnetic shaking system allows user to homogenize solution in- side vessel

Rotation system for suppository door, allows 180⁰ rotation in hori- zontal axis

Translucent acrylic water bath with frontal drain.
