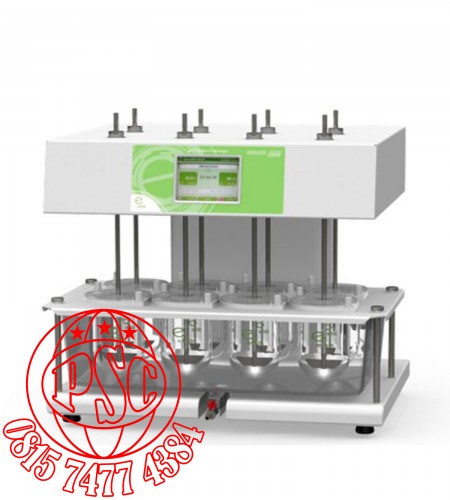

Tablet & Capsule Dissolution Tester DTS Ethik Technology

Tablet & Capsule Dissolution Tester DTS Ethik Technology

Technical Specifications

Temp. range

Amb. +5 °C to 50 ºC

Temp. control

PID

Temp. control resolution

± 0,1 °C

Display Resolution

Colored 4 digit TouchScreen

RPM

20 to 220 Rpm ± 1 Rpm

Digital Timer

Programmable up to 99 h

Output

4 to 20 ma

Temp. sensor

PT 100

Drain connection

3/8”

Temp. uniformity at 37 ºC

± 0,5 ºC

Heating system

Stainless steel tubular resistance

Protection grade

IP 20

Electrical specs

110 V or 220 V 50 Hz/60 Hz

Included Accessories & Components

Translucent glass vessels

AISI 316 stainless steel baskets ( Apparatus I ); AISI 316 stainless steel paddles ( Apparatus II ), and AISI 316 stainless steel shafts, all with sanitary polishing, marked serial number for identification in case of IQ protocol.

Acrylic vessel covers to avoid evaporation

Centralization vessel covers

Acrylic storage kit ( for tools and apparatus )

Connection for Data Logger ( 4 to 20 mA )

Operation manual

RBC Calibration Certificate for temperature controller

Optional

IQ,OQ and PQ protocols

Software for RDC 17 and GAMP5 requirements

Automated sampling station

Dissolution Tester DTSA series Information

Racks

Width mm

Depth mm

Height Drive

Height Drive

Electricals

Weight Kg

Head down mm

Head Up mm

Specs W

6

690

560

690

850

1400

56

8

690

560

690

850

1400

65

Circulation and heating system

Racks

Width mm

Depth mm

Height

6

370

160

410

8

370

160

410
