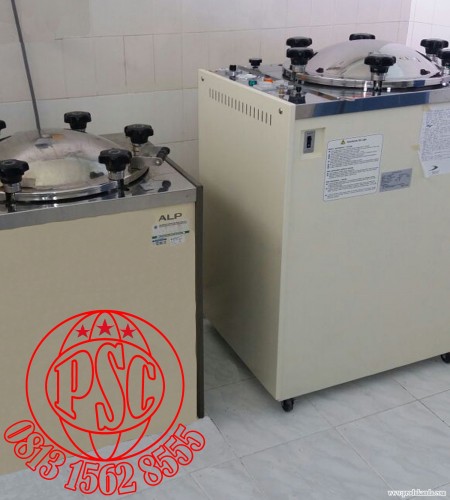

Autoclave ALP KT-30S & KT-30SDP

Autoclave ALP KT-40 & KT-40DP

Specifications

Model

Sterilization only

KT-23

KT-30S

KT-30L

KT-40S

KT-40

KT-40L

With warm air drying

KT-23DP

KT-30SDP

KT-30LDP

KT-40SDP

KT-40DP

KT-40LDP

Chamber ( inner dia x depth )

23 ¢ X 46 cm

30 ¢ X 45 cm

30 ¢ X 64 cm

40 ¢ X 50 cm

40 ¢ X 65 cm

40 ¢ X 83 cm

Usable capacity

20 L

32 L

45 L

62 L

 82 L

105 L

Ability

Usable max. press.

0. 1.6 MPa ( 1.6 kg/cm² )

Usable max. temp.

127 ºC

Sterilization

110-127 ºC

One-touch setting temp.

 110, 115, 121, 127 ºC

Sterilization System

System

Saturated steam generated by sheathed electric heater

Main controller

Precise pressure switch

Temp. set system

Analog temp. set on the panel of pressure switch

Temp. indicator

Saturated steam scale on the panel of pressure gauge

Timer

1 ~ 60 min. ( Operates after the set temp. is reached.)

Operation start

PUSH-ON start button switch

Air exhaust valve

Automatic exhaust system of remained air by heat expansion bellows valve

Water lack preventor

Automatic cut-off system by a sensitive thermostat ( Warning by buzzer and lamp )

Exhaust valve

Manual needle valve being opened only in required rapid exhaust Drain valve  Manual ball valve ( Inner dia. : 10 mm )

Sterilization pattern

PUSH-ON start → Heating, Air exhaust → Sterilization → Completion buzzer → Exhaust or natural cooling

KT-DP Models

Operation pattern with drying

PUSH-ON start → Heating, Air exhaust → Sterilization → Completion buzzer

Open DRAIN valve ( by manual ) while pressure remains → Pressure goes down to zero

Switching from STER. to DRY ( by manual ) → Set drying time → PUSH-ON drying start → Drying

→ Drying completion buzzer

Drying devices

Warm air circulating and discharge by electric heater and air pump through 0.2 µm HEPA cartridge filter

Drying temp. : 130 ºC ( changeable by inner dia l ), Timer 0 - 60 min

Safety

Safety devices

Water lack preventer. Saftey valve

Water lack preventer, Saftey valve

Over pressure saftey switch

Electric safety

Breaker for over current

Breaker for over current & slight leakage

Withstand valtage : 1.500 V, 1 min. Insulation : 100 MΩ- ( 500 V.D.C )

Safety valve operation

0.18 MPa

Water test pressure

0.36 MPa

Material

Chamber & lid

Stainless steel SUS304 shiny polished. Lid gasket : Molded silicon rubber

Outer panel

Upper surface : SUS443J 1, Main body : Steel with baked enamel,Caster ( front two with stopper )

Power requirement

AC  110 / 120 / 220 / 230 / 240 V, 1Ø  50/60 Hz

( 50/60 Hz )

1.5 kW

2.0 kW

4.0 kW

Outer size W x D x H ( cm )

53 X 40 X 87

60 X 40 X 87

60 X 40 X 95

73 X 57 X 76

73 X 57 X 91

73 X 57 X 109

Weight

35/40 kg

49/54 kg

53/58 kg

67/76 kg

72/81 kg

86/95 kg
