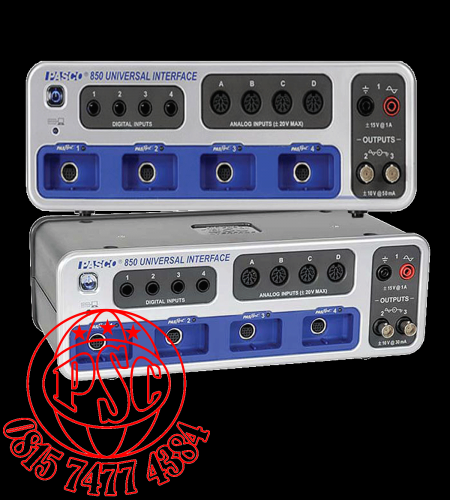

850 Universal Interface UI-5000 Pasco Scientific

850 Universal Interface UI-5000 Pasco Scientific

Specifications

Four Analog Ports

For use with analog ScienceWorkshop sensors

Input impedance

1 MΩ

Input Protection

±250 V continuous

Selectable Voltage Gain

X1, X10, X100, X1000

Not for use with CI-6552A Power Amplifier

High Speed Sampling

Measure voltages on two channels with sample rates of up to 10 MHz simultaneously or on three or  four channels at up to 1 MHz simultaneously.

15 W Function Generator

Waveforms: sine, triangle, square wave, positive and negative ramps, DC

Frequency Range

0.001 Hz to 100 kHz; 1 mHz resolution

Amplitude Range

±15 V

Resolution

7.3 mV, 12-bit DAC

Max Output Current

1 A at 15 V, over-current detection

Selectable Short-Circuit Current Limit

1.5 A, 1.1 A, 0.55 A

Selectable Voltage Limit

Selectable DC Offset

Frequency Sweep Function

Measure Output Current

61 μA at 10 V

Dual Independent High Frequency Function Generators

Independent control of frequency, waveform, and amplitude

Waveforms

sine, triangle, square wave, positive and negative ramps, DC

Frequency Range

0.001 Hz to 500 kHz; 1 mHz resolution

Amplitude Range

±10 V

Resolution

2.5 mV, 12-bit DAC

Max Output Current

50 mA at 10 V

4 Photogate Ports

Digital sensors such as Photogates and Time-of-Flight plug directly into the 850 without needing adapters

Compatible with all ScienceWorkshop digital sensors

Sensor Connect Detection

4 PASPORT Sensor Ports

Compatible with PASCO's complete line of more than 70 PASPORT sensors

Sample rates depend on sensors

Sample rate of the ports can be greater than 1000 Hz

850 Power Adapter

20 VDC, 6 A

Computer Connection

USB 2.0 ( 4890 Mbps )

External Trigger Input/Output

BNC Jack

Synchronize multiple 850s

Signal direction controlled by software

3.3 V TTL, 510 Ω

ESD protection

External Module 44-pin Connector

For connecting accessories ( available in the future ) to control and monitor a variety of new devices such as stepper motors and circuit boards

Access to the 3 Signal Generators

8 Additional Digital I/O Pins

3 Additional Analog Differential Inputs ( ±10 V )

High Speed PASPORT Channel for Self-Identification of Plug-In Modules

Power Sources

+5 V at 500 mA, ±12 V at ±300 mA
