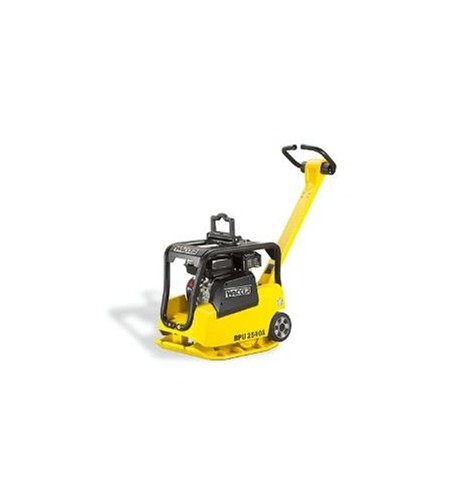

“Plate Compactor Wacker Neuson BPU-2540A”
Perhatian!
Spesifikasi “Plate Compactor Wacker Neuson BPU-2540A”
|
Description |
Metric |
Inch |
||
|
Operating weight |
140 |
kg |
309 |
lb |
|
Working width |
400 |
mm |
15.8 |
in |
|
Machine height |
647 |
mm |
25.5 |
in |
|
Working height of handle (adjustable) |
800 - 1.143 |
mm |
31.5 - 45.0 |
in |
|
Base plate thickness |
10 |
mm |
0.4 |
in |
|
Max. centrifugal force |
25 |
kN |
5.625 |
lb |
|
Vibration frequency |
90 |
Hz |
90 |
vpm |
|
Max. forward and reverse travel |
21 |
m/min |
68.9 |
ft/min |
|
Gradeability |
30 |
% |
30 |
% |
|
Compacted area (depending on soil) |
504 |
m2/h |
5.425 |
ft2/h |
|
Drive engine |
air-cooled single cylinder 4-stroke petrol engine |
|||
|
Manufacturer |
Honda |
|||
|
Type |
GX 160 |
|||
|
Max. power output |
4,0 |
kW |
5.5 |
hp |
|
at |
3.600 |
1/min |
3,600 |
rpm |
|
Rated power output |
1,5 |
kW |
2.0 |
hp |
|
at |
2.800 |
1/min |
2,800 |
rpm |
|
Fuel consumption |
0,8 |
l/h |
0.9 |
US qt/h |
|
Tank capacity |
3,7 |
l |
3.9 |
US qt |
|
Max. allowable tilt of engine in continuous operation |
20 |
° |
20 |
° |
|
Power Train |
from drive engine via centrifugal clutch and V-belt directly to the Exciter |
|||
