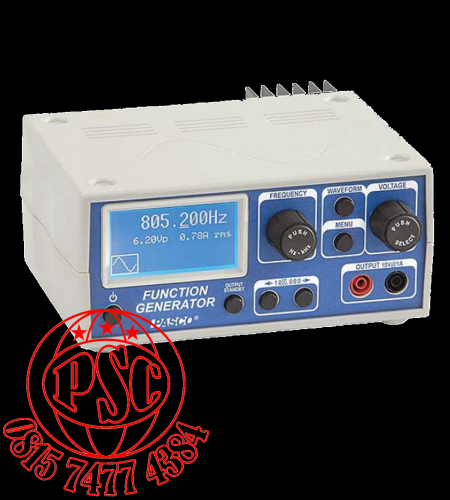

Function Generator PI-8127 Pasco Scientific |
|
Overview |
|
The Function Generator outputs sine, square, triangle, positive and negative ramps with a frequency range of 0.001 Hz to 150 kHz in addition to DC. ( A replacement for the PI-9587C ) |
|
Its powerful output, 1 Amp at ±10 Volts, makes it useful for driving speakers, string vibrators, and circuits. |
|
Features |
|
LCD Readout |
The LCD displays frequency, voltage, current, waveform, and menus. For viewing demonstrations, there is a Large Digits Mode for increased readability of the frequency.The backlight has two levels, low and high, selectable using the menu. The low backlight isusefulin dark rooms. |
Frequency/Range Selection |
There are two ranges, 0.001 to 100 Hzand 0.001 to 100 kHz, selected using the range push-button switch ( integrated with frequency knob ). |
Output Standby |
Pushing the standby button disables the output without changing settings. |
Output Current/Voltage Max. |
The maximum current or maximum voltage can be set using the menu. This is useful when the instructor needs to limit the voltage applied in a light bulb. |
Offset Voltage |
Any waveform may be offset with a DC voltage ranging from -10 V to +10 V, provided the peak voltage does not exceed 10 V. |
Frequency Sweep |
Sweep between any two frequencies at a selectable rate. |
Available Waveforms |
|
Sine |
|
Triangle |
|
Square |
|
Positive Ramp |
|
Negative Ramp |
|
DC |
|
Specifications |
|
Input Power Source |
15 V @ 1.6 amp AC/DC Adapter |
Voltage Output |
± 10 V @ 1 A, 5 mV Adjustment Resolution |
Frequency Range |
DC to 150 kHz with two ranges: 0.001 Hz to 999.999 Hz 0.001 kHz to 100 kHz ( 150 kHz for Sine Wave ) |
Frequency Resolution |
0.001 Hz for the 0.001 to 100 Hz range;1 Hz for the 0.001 kHz to 100 kHz range. |
Maximum Current/Voltage |
Programmable |
Offset Voltage |
± 10 V, 5 mV Resolution |
Waveforms |
Sine, Triangle, Square, Positive Ramp, Negative Ramp, DC |
External Voltage Input |
Use the function generator to amplify an external source ( ± 10 V maximum ) |
Trigger Output |
TTL Compatible; BNC jack on back of unit |
Display |
LCD Graphics Monochrome Display, 128 x 64, with Two-Level Backlight |
Displays |
Frequency, Waveform, Voltage, Current, Root mean Square ( RMS ) Current, Offset Voltage, Maximum Current/Voltage ( Not all simultaneously ) |
Special Display Mode |
Large digits for frequency |
Amplitude Modulation |
Modulate the signal of one function generator using another |
Frequency Sweep |
Generate a signalto sweep through start/end frequency, select sweep time, and auto-repeat the sweep |
Programmable Current Limit |
Set the maximum current to limit the current output |
USB Connection for software updates |
Download latest software from pasco.com and install throughthe USB connection |
