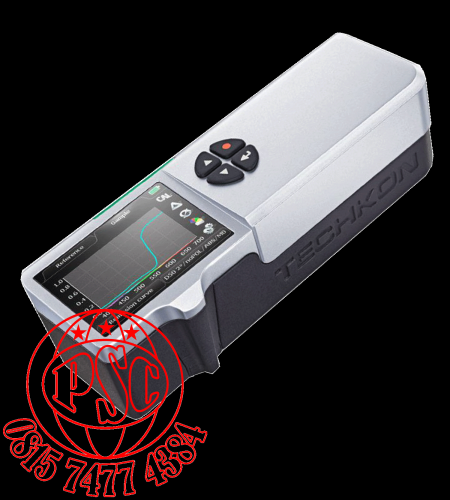

Techkon SpectroDens Basic,Advanced,Premium Densitometer

Techkon SpectroDens Basic, SpectroDens Advanced, SpectroDens Premium Densitometer

Specifications

Measurement geometry

0° : 45° optics according to ISO 5-4

Spectral range

400 to 700 nm in 10 nm steps, spectral resolution 10 nm, pixel distance sensor < 3 nm

Measurement aperture

3 mm round standard; 1.5 mm round optional

Light source

LED, provides measurement conditions M0, M1, M2, M3 according to ISO 13655

Polarization filter

Twice linear crossed, switched on and off per button release

Measurement time

Approx. 1 sec. per measurement; max. 10 seconds in scan mode

White reference

Absolute and relative; absolute white standard integrated in charging console

Illumination types

A, C, D50, D65, F 2/7/11

Standard observer

2°, 10°

Density filter

DIN 16536, DIN 16536 NB, ISO/ANSI T, ISO/ANSI I, ISO E; spectral density Dmax

Density measurement range

0.00 – 2.50 D

Repeatability

0.01 D; 0.03 CIE ∆E*a*b*

Inter-instrument agreement

0.01 D; 0.3 CIE ∆E*a*b*

Display

Color LC backlight display, anti-reflective, 320 x 240 pixels

Power supply

Rechargeable LiFePO4 battery, regulated recharge via charging console with AC adapter, 100 – 240 V, 47 – 63 Hz, approx. 10000 measurements per battery charge, battery level control

Communication port

USB; WLAN module optional

Weight

495 grams

Dimensions

62 x 50 x 185 mm ( approx. 2.4 x 2.0 x 7.3 inches )

System requirements for TECHKON software : Windows 7, 8 or 10; 32- and 64-bit, minimum : IBM-compatible PC with Intel Core Duo processor or comparable processor, 4 GB RAM, 2 USB ports

Model

SpectroDens Basic

SpectroDens Advanced

SpectroDens Premium

Same functions as SpectroDens Basic and additionally :

Same functions as SpectroDens Advanced and additionally :

Automatic density

ΔE*CIE2000

Ugra/Fogra media wedge evaluation

Density CMYK (with reference measurements)

ΔE*CIE94

ISO-Check: Color control according to ISO 12647

Dot area

ΔE*cmc

CIE L*u*v*

Dot gain

CIE color circle

CIE L*C*h*uv

Print contrast

CIE XYZ

CIE xyY

Gray and color balance

CIE L*C*h*ab

DIN Lab99

Ink trapping

ΔE*a*b*

metamery index

Printing curve

CIE L*a*b*

Whiteness

Density spectrum

Remission spectrum

Yellowness

Spectral density for spot colors

InkCheck : Color control of spot colors

Pass/fail tolerance

Trend function ExPresso mini

Color library with up to 20 color books and a total number of 25000 reference values

Opacity

Slur/doubling

Memory capacity for 3000 sample values and 300 reference values

OBA-Check

Dot area to Yule-Nielsen for printing plates

G7™

LED technology provides measurement conditions M0, M1, M2 and M3 according to ISO 13655

Spot Colour Tone Value (SCTV)

Spot Colour Tone Value (SCTV) Printing curve

Average

Software

SpectroConnect requires Windows 7, 8 or 10

Contents

§ Measurement device SpectroDens

§ Charging console with white standard

§ AC adapter with universal plugs

§ Micro-USB cable

§ CD with software TECHKON Spectro-Connect

§ Manual with ISO 9000 compliant certificate ( pdf on CD )

§ Manufacturer certificate

Optional accessories

§ Small apertures

§ Print control strip TCS Digital

§ Color reference SpectroCheck

§ WLAN module

§ Upgrades for SpectroDens Basic and Advanced
