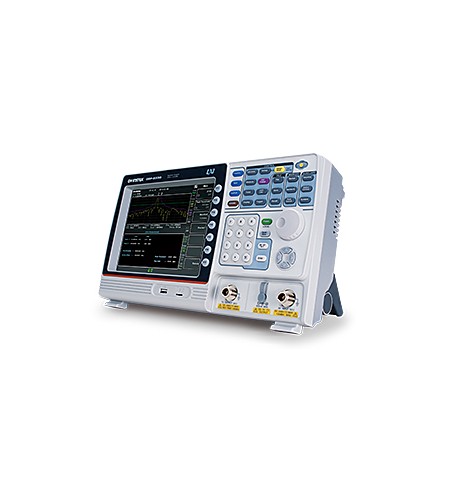

Spesifikasi GW INSTEK GSP-9330


Features
  • Frequency Range: 9kHz ~ 3.25GHz
  • 0.025ppm Frequency Stability and 1ppm aging Rate
  • RBW: 1Hz ~ 1MHz (3dB), 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
  • Fastest sweep time: 204us
  • Sensitivity: -149 dBm/Hz (@PreAmp on)
  • Built-in Preamplifier, 50dB Attenuator, and Sequence Function
  • Built-in EMC pretest function, Quasi-Peak/Average EMI detect mode
  • Built-in 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis
  • Built-in P1dB point, Harmonic, CHPW, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, TDP, Gated Sweep
  • Built-in Spectrogram, Topographic and Split-Window Display Modes
  • Remote control EMI measurement software: SpectrumShot
  • Remote Control Interface: LAN, USB, RS-232
  • Options: Tracking Generator, GPIB Interface, Battery Pack

ASSSESORIES

Standard Accessories
Power Cord, Certificate of Calibration,
CD-ROM (with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver)

Options
Option 01, Tracking Generator
Option 02,BatteryPack
Option 03, GPIB Interface

Optional Accessories
GSC-009, Soft Carrying Case
GRA-415, Rack Adapter Panel



Free Download
SpectrumShot PC Software for Windows System (available on GW Instek website)
IVI Driver Supports LabVIEW/LabWindows/CVI Programming (available on NI website)
