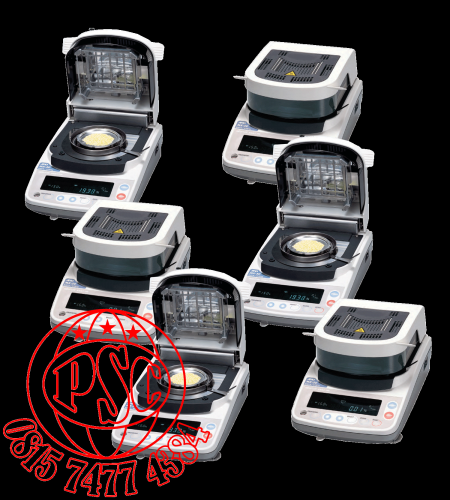

AND ML-50 Moisture Analyzers

AND ML-50 Moisture Analyzers

Specifications

Model

MS-70

MX-50

MF-50

ML-50

Measurement Method

400W straight halogen lamp heating system with SRA filter and SHS weighing technology

Max Sample Weight Capacity

71 g

51 g

Weight Resolution

0.0001 g

0.001 g

0.002 g

0.005 g

Moisture Content Display

0.001%/0.01%/0.1%

0.01%/0.1%

0.05%/0.1%/1%

0.1%/1%

Moisture Content Accuracy over 1 g

0.05%

0.10%

0.20%

0.5%

( Standard Deviation ). over 5 g

0.01%

0.02%

0.05%

0.1%

Heating Technology

Halogen lamp  ( Straight  type,  400  Watt  max,  5000 hours )

Drying Temp. ( 1°C increment )

30-200°C

50-200°C

Memory of Measurement Programs

20 sets

10 sets

5 sets

Measurement Programs

Standard Mode/Automatic Mode/Quick Mode/Timer Mode/Manual Mode

Measurement Mode

Moisture content ( Wet or Dry base ) / Dry content/Ratio/Weight

Heating Mode

Standard/Quick/Step/Ramp

Standard/Quick

Display Type

Large VFD

Interface

RS-232C standard

Data Memory Function

100

50

30

Operating Temperature

5-40°C ( 41-104°F ) less than 85% RH

GLP/GMP/ISO

Available

Self Check Function

Standard

Communication Software

WinCT-Moisture standard

WinCT standard

Sample Pan Size

Ø85 mm

Power

AC 100V  to 120V  ( 3 A ) or AC 200V  to 240V  ( 1.5 A ), 50/60 Hz, Approx.  400 W

Physical Dimention/Weight

215 ( W ) x 320 ( D ) x 173 ( H ) / Approx.  6 kg

Standard Accessories

Sample Pans  ( 20 for MS/MX/MF 10 for ML ), Pan  Handles ( 2 for MS/MX/MF, 1 for ML ), Tweezers ( for MS/MX/MF ), Spoon ( for MS/MX/MF ), Test Sample ( 30 g of Sodium  Tartrate Dihydrate for MS/MX/MF ), CD-ROM ( WinCT-Moisture  for MS/MX, WinCT for MF ), Glass Fiber Sheet  ( for MS/MX/MF ), RS-232C Cable  ( for MS/MX ), Display  Cover, Dust Cover ( for MS/MX/MF ), Instruction Manual, Quick Reference Card, Power  Cable, Fuse
