KYORITSU 2003A Ac Dc

Spesifikasi KYORITSU 2003A Ac Dc

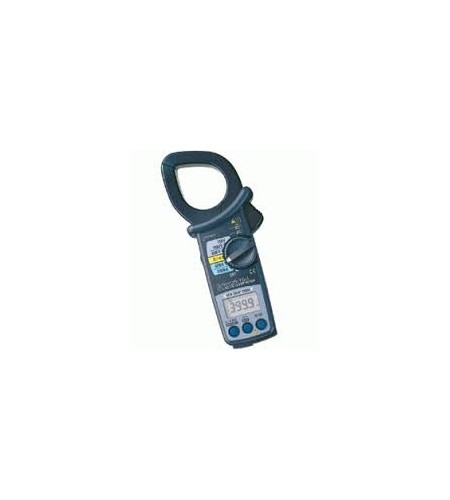

Digital Clamp KYORITSU  2003A Ac Dc

Alat Laboratorium Umum

AC A 400A/2000A (0 - 1000A)
±1.5%rdg±2dgt [50/60Hz]
±3%rdg±4dgt [40 - 500Hz]
±5%rdg±4dgt [500Hz - 1kHz]
2000A (1001 - 2000A)
±3%rdg±2dgt [50/60Hz]
DC A 400/2000A ±1.5%rdg±2dgt
AC V 400/750V
±1.5%rdg±2dgt [50/60Hz]
±1.5%rdg±4dgt [40Hz - 1kHz]
DC V 400/1000V ±1%rdg±2dgt
Ω 400/4000Ω ±1.5%rdg±2dgt
Continuity buzzer buzzer sounds below 50±35Ω
Conductor size Ø55mm max.
Frequency response 40Hz - 1kHz
Output Recorder :
DC400mV against AC/DC400A
DC200mV against AC/DC2000A
Safety Standard IEC 61010-1 CAT IV 600V , CAT III 1000V
IEC 61010-031
IEC 61010-2-032
Power source R6 (AA) (1.5V) × 2
Dimensions 250(L) × 105(W) × 49(D)mm
Weight 530g approx.
Included Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6 (AA) × 2
Instruction Manual
Optional Accessories 8008 (Multi-Tran) (AC only)
7256 (Output cord)
