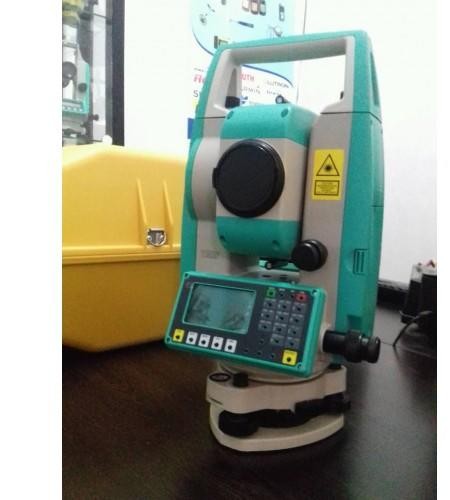

Total Station Ruide RTS 822R2 adalah instrumen optis/elektronik yang digunakan dalam pemetaan dan konstruksi bangunan. Total station merupakan theodolit terintegrasi dengan komponen pengukur jarak elektronik (electronic distance meter (EDM)) untuk membaca jarak dan kemiringan dari instrumen ke titik tertentu.

Specification Total Station Ruide RTS 822R2 :

Telescope
Length : 154mm
Objective Lens Diameter : Telescope 45mm
Magnification : 30x
Image : Erect
Resolving Power : 3″
Mini. Focus : 1.0m

Distance Measurements
Single Prism : 5000m
Non Prism : 400m
Accuracy – Prism         : (2mm+2ppm x D)m.s.e
– Non Prism : (3mm+2ppm x D)m.s.e
Meteorologic Correction : ATMOSense ( Auto )
Prism Constant : Manual Input

Angle Measurement
Method : Absolute Encoding
Detecting System : H:2 Sides
Min. Reading : 1″/5″
Accuracy : 2″
Diameter of Circle : 79mm

Display
Display Unit : Graphic LCD 160×90 dots with White Backlight
No. of Unit : 2 Sides
Keyboard : Alhanumeric Keys

Level Sensitivity
Plae Level : 30″/2mm
Circular Level : 8’/2mm

Optical Plummet ( Optional – Internal Laser Plummet )
Image : Erect
Magnification : 30x
Focusing Range : 0.3m
Field of View : 5

Data Storage & Inerface
Internal Memory : 10,000 pts or 20,000 coord. ( Fixed/SD/USB )

General
Guide Light : No
Weight : 5.4kg
Dimension : 340mm(H) X 160mm(L) X 150mm(W)
Battery Type : Rechargeable Li-on Battery, 7.4V, 3000mAh
Water & dust proof : IP66
Working Time : 16h
