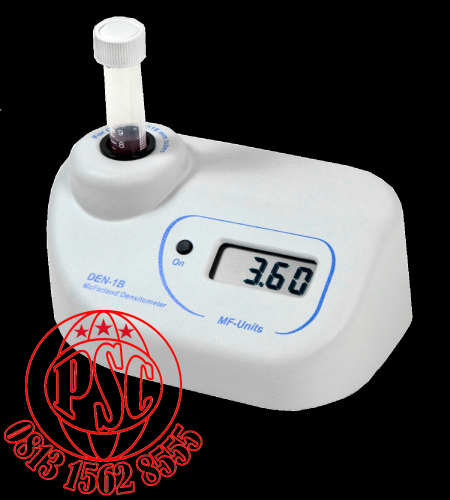

Densitometer DEN-1 & DEN-1B Grant Instrument
Perhatian!
Spesifikasi Densitometer DEN-1 & DEN-1B Grant Instrument
|
DEN-1 & DEN-1B Densitometer Grant Instrument |
||
|
Descriptions |
||
|
The Grant bio DEN-1 and DEN-1B are a compact benchtop densitometers ( suspension turbidity meter ) for measuring turbidity of cell suspensions in a variety of life science applications. |
||
|
The densitometers are designed and factory calibrated to measure turbidity in the range of 0.5 to 4.0 McFarland units ( DEN-1 ) 0.0 to >7.5 McFarland units ( DEN-1B ) with a small standard deviation. If required, it can deliver a wider measurement range ( up to 15.00 McFarland units ), but with a greater standard deviation. |
||
|
Measurement range |
0.5 to 4.0 McFarland units (DEN-1), 0.0 to >7.5 McFarland units ( DEN-1B ) |
|
|
Measurement time |
1 second |
|
|
Precision |
±3 % |
|
|
Readings, conveniently shown in McFarland units, are clearly visible on the bright LED display |
||
|
Factory calibrated - retains calibration without power supply |
||
|
Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory |
||
|
Designed for tubes with an outer diameter of 18 mm. 16 mm tubes can also be accommodated by using the |
||
|
optional tube adaptor D-16 |
||
|
Extremely compact design with small footprint and low profile - fits easily into the smallest workspace |
||
|
DEN-1b - either battery powered by 3 x AAA or via external power supply |
||
|
Specifications |
||
|
Model |
Den-1 |
Den-1B |
|
Dimensions ( h x d x w ) |
75 x 115 x 165 mm |
75 x 115 x 165 mm |
|
Temperature range |
+4 to 40ºC |
+4 to 40ºC |
|
Light source |
LED |
LED |
|
Wavelength |
565 ±15Inm |
565 ±15Inm |
|
Range ( McFarland units ) |
0.3 to 15.0 |
0.00 to 15.00 |
|
Precision |
±3% |
±3% |
|
Measurement time |
1 sec |
1 sec |
|
Tube diameter - external diameter |
18 mm |
18 mm |
|
Tube diameter-with D16 adapter |
16 mm |
16 mm |
|
Sample volume |
>2 ml |
>2 ml |
|
Display/display resolution |
LED/0.1 McF |
LCD/0.01 McF |
|
Independent power supply |
- |
3 x AA batteries |
|
External Power supply |
Input AC 120-230V, 50/60Hz |
Input AC 120-230V, 50/60Hz |
|
Output DC 12V |
Output DC 12V |
|
|
Power consumption - 230 V |
1W ( 0.08A ) |
0.1W ( 0.007A ) |
|
Power consumption - 120 V |
||
|
Weight |
0.7 kg |
0.7 kg |
|
Applications |
||
|
Life science - typical applications include determining concentration of cells ( bacterial and yeast cells ) in the fermentation process, detecting the susceptibility of micro-organisms to antibiotics, identifying micro-organisms with various test systems, and measuring optical density at fixed wavelength. |
||
|
Optional accessories |
||
|
Part No |
Description |
|
|
DEN MCF STDS |
Set of liquid McFarland standards in 16mm ø glass tubes. 0.5/1.0/2.0/3.0/4.0 can be decanted into an alternative tube ( shelf-life no longer valid ). Requires D16 adaptor,supplies with DEN-1/DEN-1B |
|
|
D16 |
Spare tube adaptor for tubes with 16 mm outer diameter |
|
