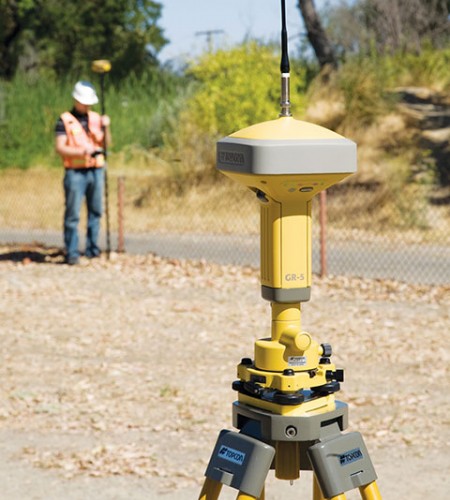

Jual GPS Geodetik Topcon GR5 GNSS RTK & Static

Kombinasi faktor bentuk yang kompak, teknologi pelacakan Universal yang revolusioner, dan berbagai metode komunikasi menjadikan receiver GPS Geodetik Topcon GR5 pilihan yang paling populer dan serbaguna untuk keandalan GNSS presisi tinggi.

Capable of tracking GPS, GLONASS, BeiDou, Galileo, QZSS constellations
Universal Tracking Channels capable of all-in-view tracking
Track every satellite constellation above today and tomorrow
Signal scrubbing Fence Antenna® to provide ultimate signal lock
Highest accuracy positioning for RTK, network, and more
Offers choice of UHF or Spread Spectrum radios, as well as an optional, internal cellular modem for all your project needs

Spesifikasi GPS Geodetik Topcon GR5 GNSS RTK & Static :
GNSS TRACKING
Signals Tracked*
GPS, GLONASS, Galileo*, BeiDou*, SBAS, and QZSS
Number of Channels
226-Channel Vanguard Technology™ with Universal Tracking Channels
*A Positioning solution with these signals will be integrated and made available when the constellation matures and is ready for commercial use.
ACCURACY
Accuracy
Static/Fast Static:
H: 3.0 mm + 0.4 ppm
V: 5.0 mm + 0.5 ppm
Precision Static:
H: 3.0 mm + 0.1 ppm
V: 3.5 mm + 0.4 ppm
RTK (L1+L2):
H: 5 mm + 0.5 ppm
V: 10 mm + 0.8 ppm
*See brochure for more information.
COMMUNICATIONS
Base radio output
1.0W
Cellular*
Integrated HSPA+/CDMA
I/O Communications
Class 2 Bluetooth®
USB and Serial
*Optional
DATA
Memory
Removable SD/SDHC Card
Real Time Data Output
TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+
ASCII output
NMEA 0183 version 2.x, 3.x and 4.x
PHYSICAL AND ENVIRONMENTAL
Enclosure
Magnesium I-Beam Housing
Operating Temperature*
-30ºC to 70°C
*-30ºC to +60°C with integrated batteries.
CERTIFICATIONS AND STANDARDS
Shock Rating
2 m pole drop to concrete
IEC 60068-2-29
IEC 60068-2-27
Vibration Rating
Compliance with MIL-STD 810F – 514.5-Cat.24
