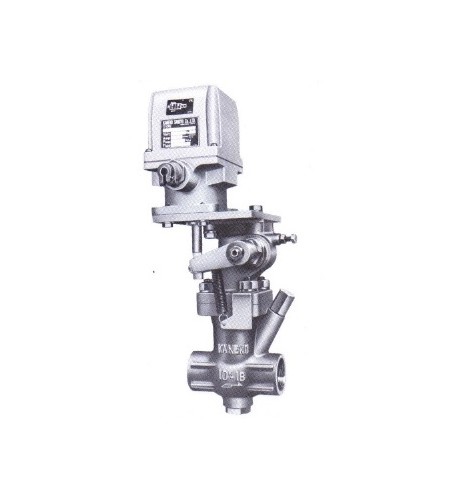

Spesifikasi KANEKO TWO WAY SOLENOID VALVE M30 SERIES

KANEKO SOLENOID VALVE M30 SERIES
TWO WAY SOLENOID VALVE
Origin : Japan

# Features :
+ Pilot valve and main valve because it directly, you can use 0 or differential pressure.
+ For the same seat diameter and small diameter pressure loss is known.
+ We also manufacture certified high-pressure gas.

# Precautions :
+ Permissible tilt angle attachment is less than 30 degrees both left and right front and rear.

# Standard Specification :
+ Fluid Temperature : Be used up to 5 Deg ~ 200 Deg C by the internal structure
+ Ambient Temperature : -20 Deg ~ +40 Deg C (That the fluid does not freeze but)
+ Fluid Viscosity : 250 cst following
+ Electrical Ratings : Continuity
+ The Allowable Voltage Fluctuation Rate : +10%, - 15%



A. General-Purpose Type – Gun metal Body
- Model : M30C-15-A44-BS11    - Model : M30D-15-A44-BS11
- Model : M30C-20-A44-BS11    - Model : M30D-20-A44-BS11
- Model : M30C-25-A44-BS11    - Model : M30D-25-A44-BS11
- Model : M30C-32-A44-BS11    - Model : M30D-32-A44-BS11

- Model : M30C-15-A44-BF11    - Model : M30D-15-A44-BF11
- Model : M30C-20-A44-BF11    - Model : M30D-20-A44-BF11
- Model : M30C-25-A44-BF11    - Model : M30D-25-A44-BF11
- Model : M30C-32-A44-BF11    - Model : M30D-32-A44-BF11

B. Explosion-Proof Type – Gun metal Body
- Model : M30C-15-AE44-BS11    - Model : M30D-15-AE44-BS11
- Model : M30C-20-AE44-BS11    - Model : M30D-20-AE44-BS11
- Model : M30C-25-AE44-BS11    - Model : M30D-25-AE44-BS11
- Model : M30C-32-AE44-BS11    - Model : M30D-32-AE44-BS11

- Model : M30C-15-AE44-BF11    - Model : M30D-15-AE44-BF11
- Model : M30C-20-AE44-BF11    - Model : M30D-20-AE44-BF11
- Model : M30C-25-AE44-BF11    - Model : M30D-25-AE44-BF11
- Model : M30C-32-AE44-BF11    - Model : M30D-32-AE44-BF11

C. General-Purpose Type – Stainless Steel
- Model : M30C-15-A44-SS11    - Model : M30D-15-A44-SS11
- Model : M30C-20-A44-SS11    - Model : M30D-20-A44-SS11
- Model : M30C-25-A44-SS11    - Model : M30D-25-A44-SS11
- Model : M30C-32-A44-SS11    - Model : M30D-32-A44-SS11

- Model : M30C-15-A44-SF11    - Model : M30D-15-A44-SF11
- Model : M30C-20-A44-SF11    - Model : M30D-20-A44-SF11
- Model : M30C-25-A44-SF11    - Model : M30D-25-A44-SF11
- Model : M30C-32-A44-SF11    - Model : M30D-32-A44-SF11

D. Explosion-Proof Type – Stainless Steel
- Model : M30C-15-AE44-SS11    - Model : M30D-15-AE44-SS11
- Model : M30C-20-AE44-SS11    - Model : M30D-20-AE44-SS11
- Model : M30C-25-AE44-SS11    - Model : M30D-25-AE44-SS11
- Model : M30C-32-AE44-SS11    - Model : M30D-32-AE44-SS11

- Model : M30C-15-AE44-SF11    - Model : M30D-15-AE44-SF11
- Model : M30C-20-AE44-SF11    - Model : M30D-20-AE44-SF11
- Model : M30C-25-AE44-SF11    - Model : M30D-25-AE44-SF11
- Model : M30C-32-AE44-SF11    - Model : M30D-32-AE44-SF11
