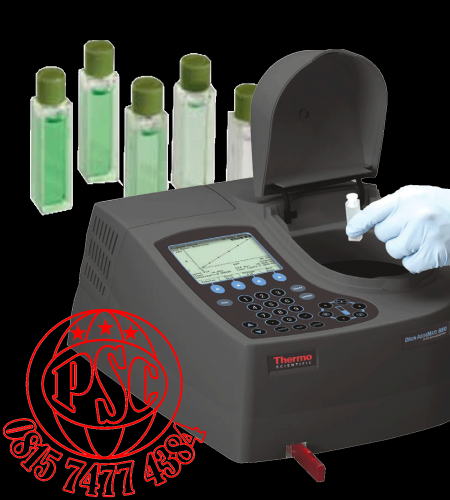

AquaMate 8000 UV-Vis & 7000 Vis Spectrophotometer Thermo
Perhatian!
Spesifikasi AquaMate 8000 UV-Vis & 7000 Vis Spectrophotometer Thermo
AquaMate 8000 UV-Vis & AquaMate 7000 Vis Spectrophotometer Thermo Scientific |
||
Specifications |
||
Model |
AquaMate 8000 UV-Vis Spectrophotometer |
AquaMate 7000 Vis Spectrophotometer |
Optical Design |
Dual beam-internal reference detector |
Single beam |
Spectral Bandwidth |
1.8 nm |
5.0 nm |
Light Source |
Xenon flash lamp |
Tungsten-halogen lamp |
( Typical Lifetime ) |
( 5 years ) |
( 1000 hours ) |
Detector |
Dual silicon photodiodes |
Silicon photodiode |
Wavelength |
||
Range |
190 to 1100 nm |
325 to 1100 nm |
Accuracy |
±1.0 nm |
±1.0 nm |
Repeatability |
±0.5 nm |
±0.5 nm |
Slew Speed |
11,000 nm/min |
11,000 nm/min |
Scanning Speed |
10 to 4,200 nm/min |
10 to 4,200 nm/min |
Data Interval |
0.2, 0.5, 1.0, 2.0, 3.0, 5.0 nm |
1.0, 2.0, 3.0, 5.0 nm |
Photometric |
||
Measurement Modes |
Absorbance, % transmittance, concentration |
Absorbance, % transmittance, concentration |
Range |
-0.5 to 5.0 A ; -1.5 to 125 %T ; ±9999 C |
-0.1 to 3.0 A ; -0.3 to 125 %T ; ±9999 C |
Linearity |
Up to 3.5 A at 260 nm |
Up to 3.0 A at 340 nm |
Accuracy |
±0.005 A at 1.0 A, <0.00025 at 0.0 A |
0.5 % or ±0.005 A, whichever is greater up to 2 A |
Noise |
<0.00050 at 1.0 A, <0.00080 at 2.0 A |
<0.001 A at 0.0 A, <0.002 A at 2.0 A |
Drift |
RMS at 260 nm |
Peak-to peak at 340 nm |
Stray Light |
<0.08 %T at 220 nm and 340 nm, |
<0.08 %T at 220 nm and 340 nm, |
<0.1 %T at 340 nm and 400 nm, |
<0.1 %T at 340 nm and 400 nm, |
|
<1.0 %T at 198 nm |
<1.0 %T at 198 nm |
|
Display |
Graphical with LCD backlight - 9.7 x 7.1 cm ( 3.8 x 2.8 in ) |
Graphical with LCD backlight - 9.7 x 7.1 cm ( 3.8 x 2.8 in ) |
Keypad |
Sealed membrane with tactile response keys |
Sealed membrane with tactile response keys |
Connectivity |
USB type A port for USB stick ( front panel ), |
USB type A port for USB stick ( front panel ), |
USB type B port for computer ( rear panel ), |
USB type B port for computer ( rear panel ), |
|
USB type A port for printer ( rear panel ) |
USB type A port for printer ( rear panel ) |
|
Dimensions |
30 W x 40 D x 25 H cm ( 11.8 x 15.7 x 9.8 in ) |
30 W x 40 D x 25 H cm ( 11.8 x 15.7 x 9.8 in ) |
Weight |
8.6 kg (19 lb.) |
8.6 kg (19 lb.) |
Power Requirements |
100 to 240 V ; 50 to 60 Hz |
100 to 240 V ; 50 to 60 Hz |
Order Information |
||
Part Number |
Description |
|
AquaMate 8000 UV-Vis Spectrophotometer, includes methods on USB memory stick; 6-position, 3-position and 1-position vial holder turrets; user documentation; dust cover; USB cable; 110 V, 220 V and 240 V power cords |
||
AquaMate 7000 Vis Spectrophotometer, includes methods on USB memory stick; 3-position vial holder turret; user documentation; dust cover; USB cable; 110V, 220 V and 240 V power cords |
||
AQ006C |
AquaMate 6-position vial holder turret for six 10 mm square vials |
|
AQ003C |
AquaMate 3-position vial holder turret for one 13-25 mm round vial, one |
|
AQ001C |
AquaMate 1-position vial holder turret for one 10 mm square vial |
|
AQ0USB |
AquaMate methods, USB memory stick |
|
AQCHNV |
AquaMate power cord with China, Australia, New Zealand plug |
|
AQ240V |
AquaMate power cord with 240V UK, Singapore plug |
|
AQ220V |
AquaMate power cord with 220V Euro plug |
|
AQ110V |
AquaMate power cord with 110V US, Japan plug |
|
AC2V24 |
24 mm round vials, 12 pack |
|
Note : When ordering AQ8000 or AQ7000 instruments, the reagent chemistries, vials and AQCHNV power cord must be ordered separately |
