HG-15D HOMOGENIZER DAIHAN

Specification

Model

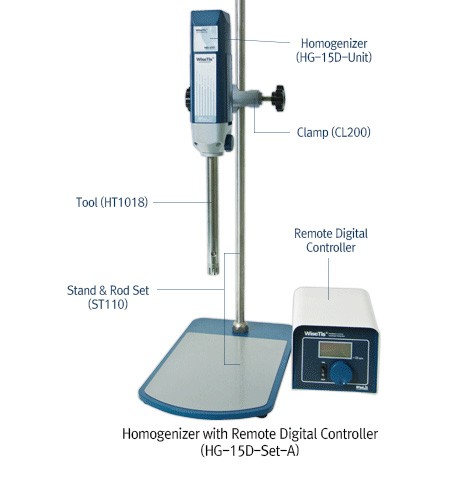

Homogenizer Package-Set “HG - 15D-Set A  and B

Speed Range & Resolution

2,000 ~ 27,000 rpm ( without load ), 10 rpm-Control

Working Range

1 ~ 2,500 ml

Motor Rating ( Input / Output )

Input : 300W , Output : 160 W

Timer & Alarm

10 sec ~ 15 min, Timer-end Alarm

Display

Digital LCD with Back - Light Function

Controller

Digital Feedback Controller ( Remote Type )

Safety Device

Over Load & Over Heat Protector

Usable Dispersing Tool

Φ8 mm Stator “HT1008”, Φ10 mm Stator “HT1010”, ( SET A)

Φ18 mm Stator “HT1018”, Φ25 mm Stator “HT1025”  ( SET B)

Material

Aluminum Die-casting and ABS-Unit, Stainless steel ( ＃304 )-Tool

Permissible Temp. & Moisture

Ambient +5 ~ 50 ℃, 85%

Extension Arm Size

Φ12.7 × L 250 mm

Dimension

60 × 75 × h 215 mm

Weight

2.5 kg

Packing Size

580 × 340 × h 230 mm

Gross Weight

6 kg

Power Consumption

160 W

Power Supply & Cord Plug

1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz
